Initial Feedback System Performance Check
Initial Feedback System Performance Check

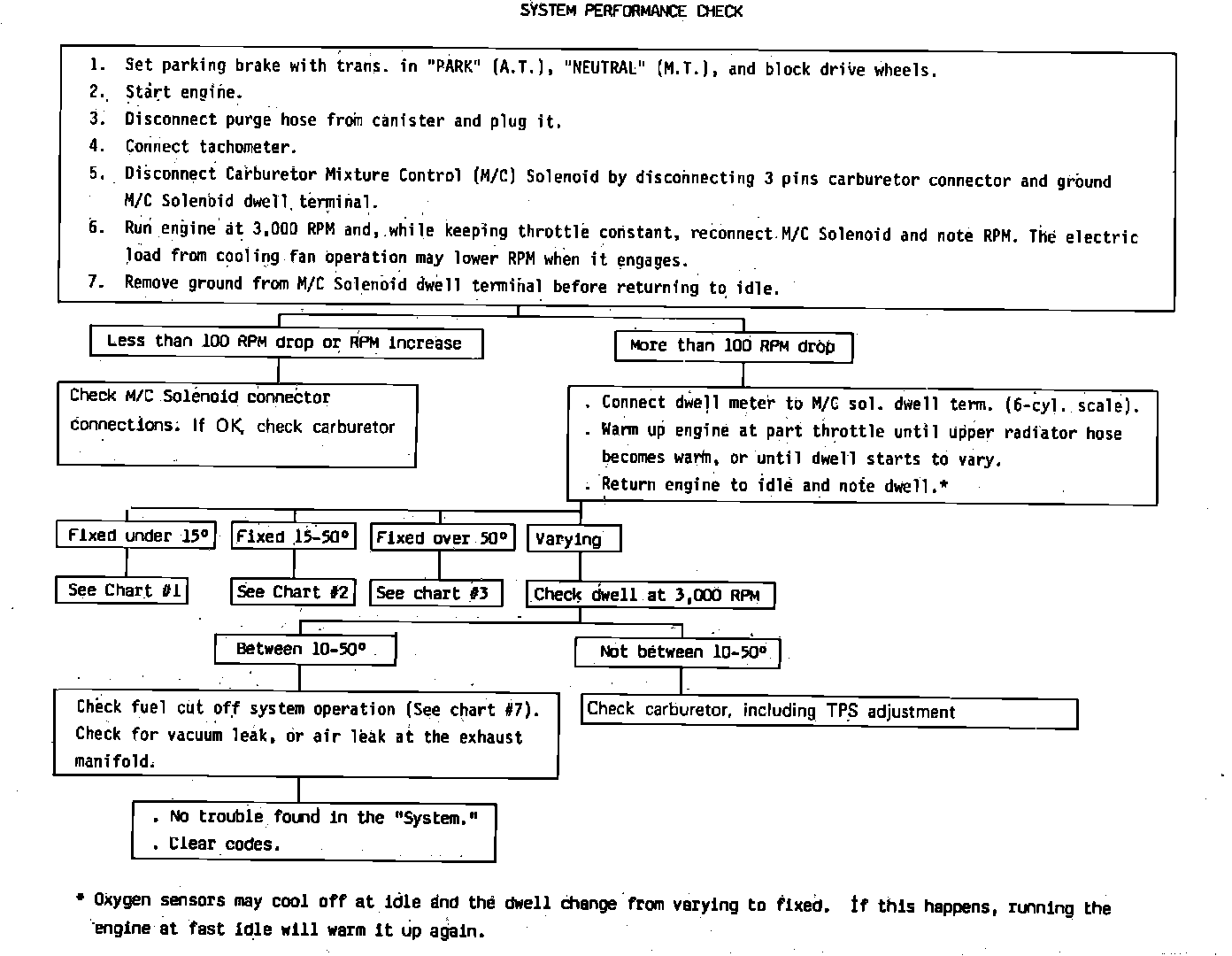

Fig. 7 System performance check:
