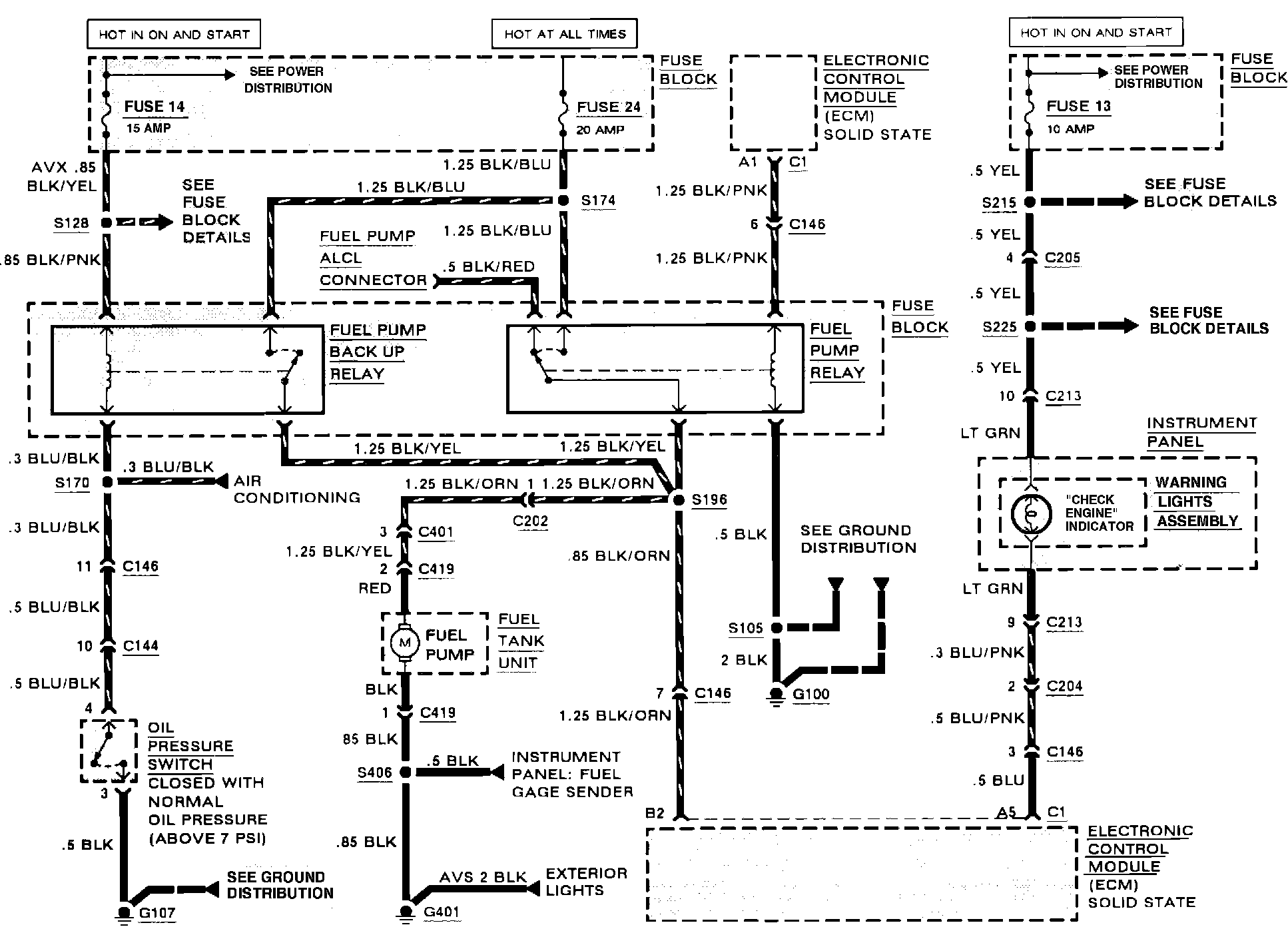

Fuel Control, Check Engine Indicator

Throttle Body Injection: Fuel Control, Check Engine Indicator:
