Horn Fails to Sound When Alarm Is Tripped

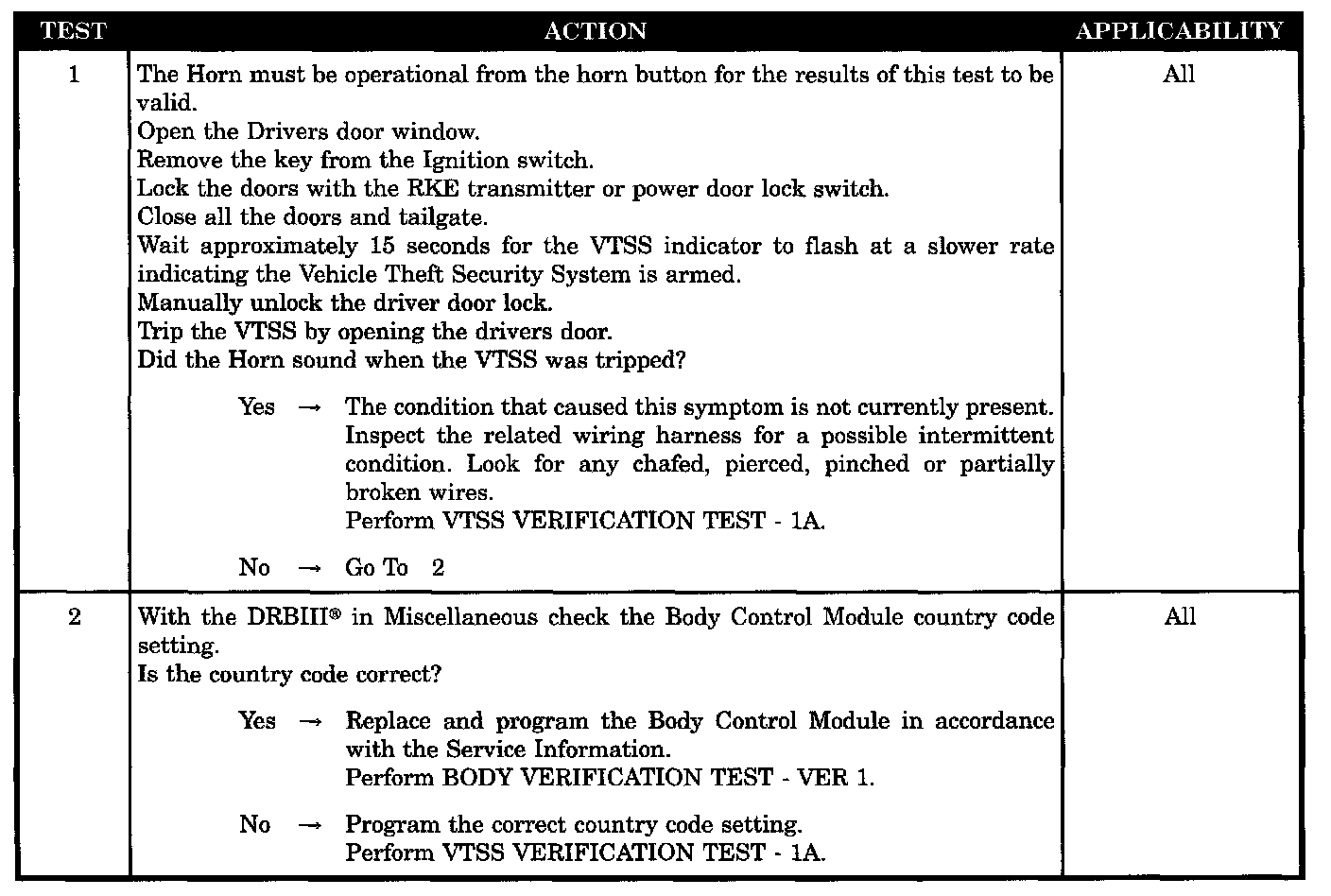

Test 1 - 2:
SYMPTOM
HORN FAILS TO SOUND WITH VTSS
POSSIBLE CAUSES
-
Incorrect country code programmed in
BCM
-
Horn operation
-
Body control module
