Home >> Jeep >> 2006 >> TJ (CANADA) L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fluid Pressure Sensor/Switch, A/T

Fluid Pressure Sensor/Switch, A/T

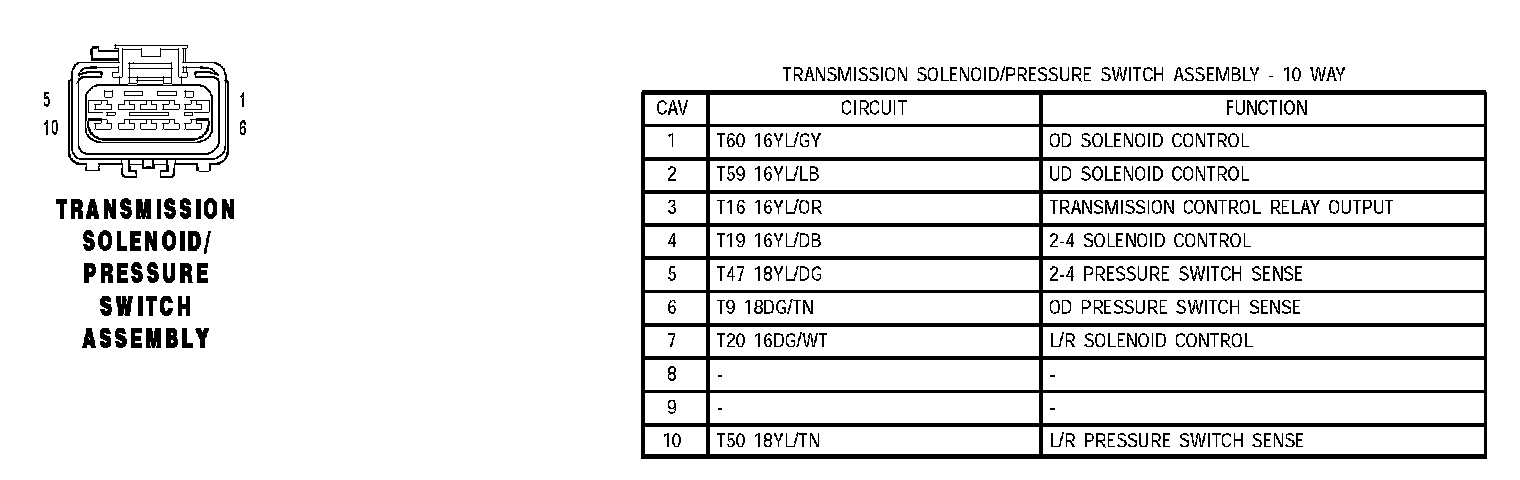

Transmission Solenoid/Pressure Switch Assembly:
