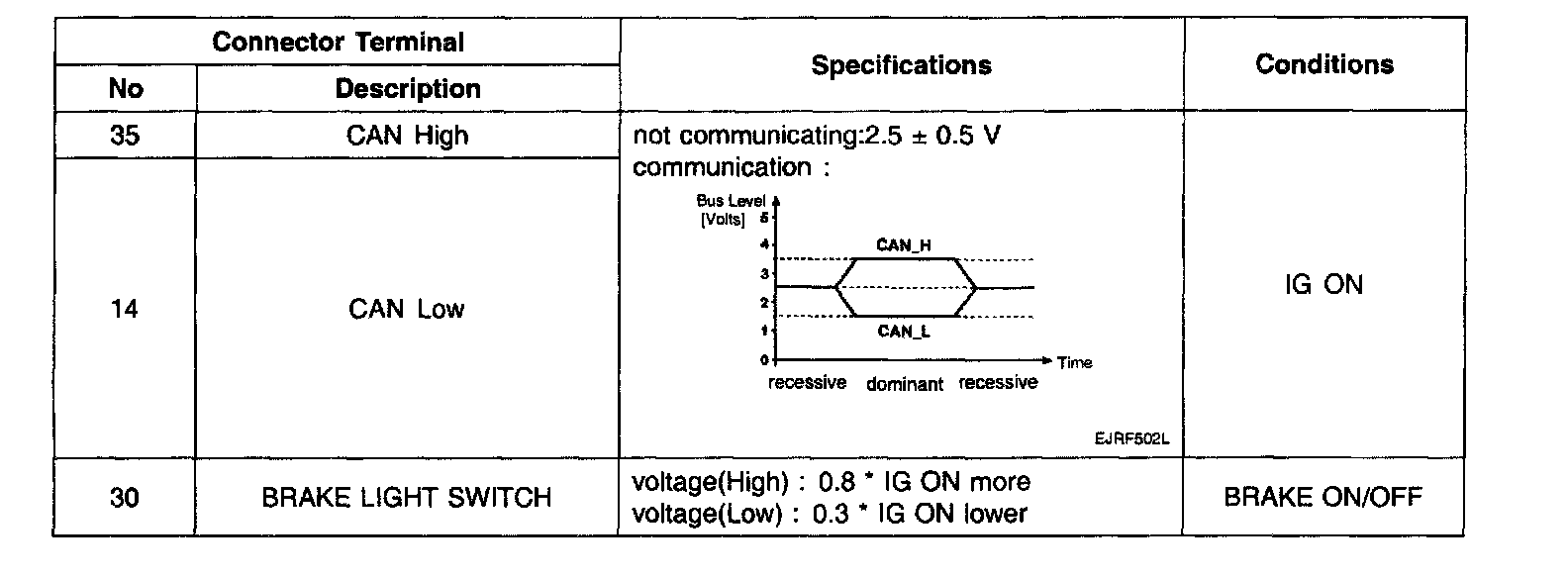

Control Module Pinout Values - ECS (Electronic Stability Program Control)
Control Module Pinout Values - ECS (Electronic Stability Program Control)

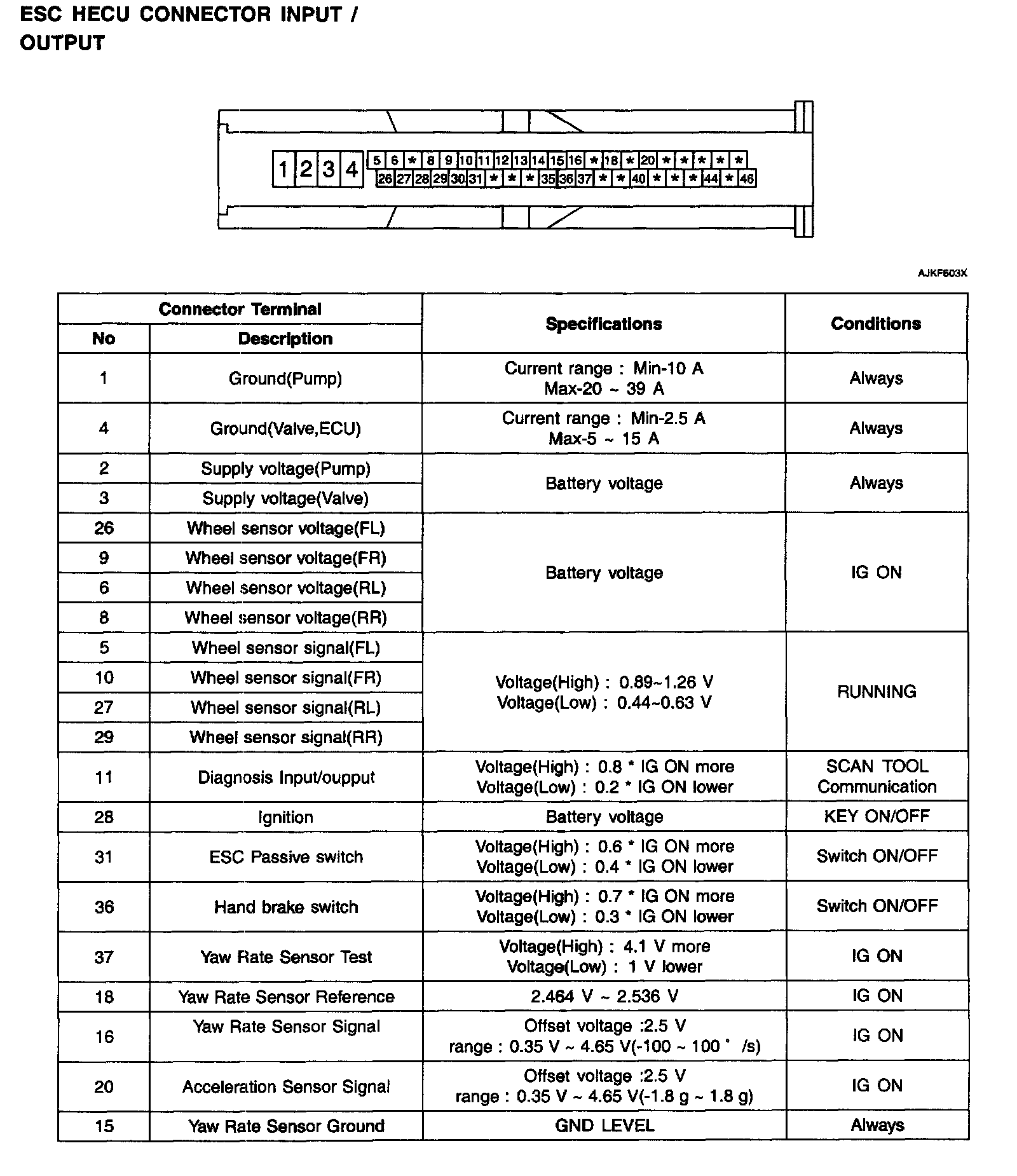

ESC HECU CONNECTOR INPUT /OUTPUT:
