Restraint (Depowered) - Supplemental Restraint System Control Module (SRSCM)

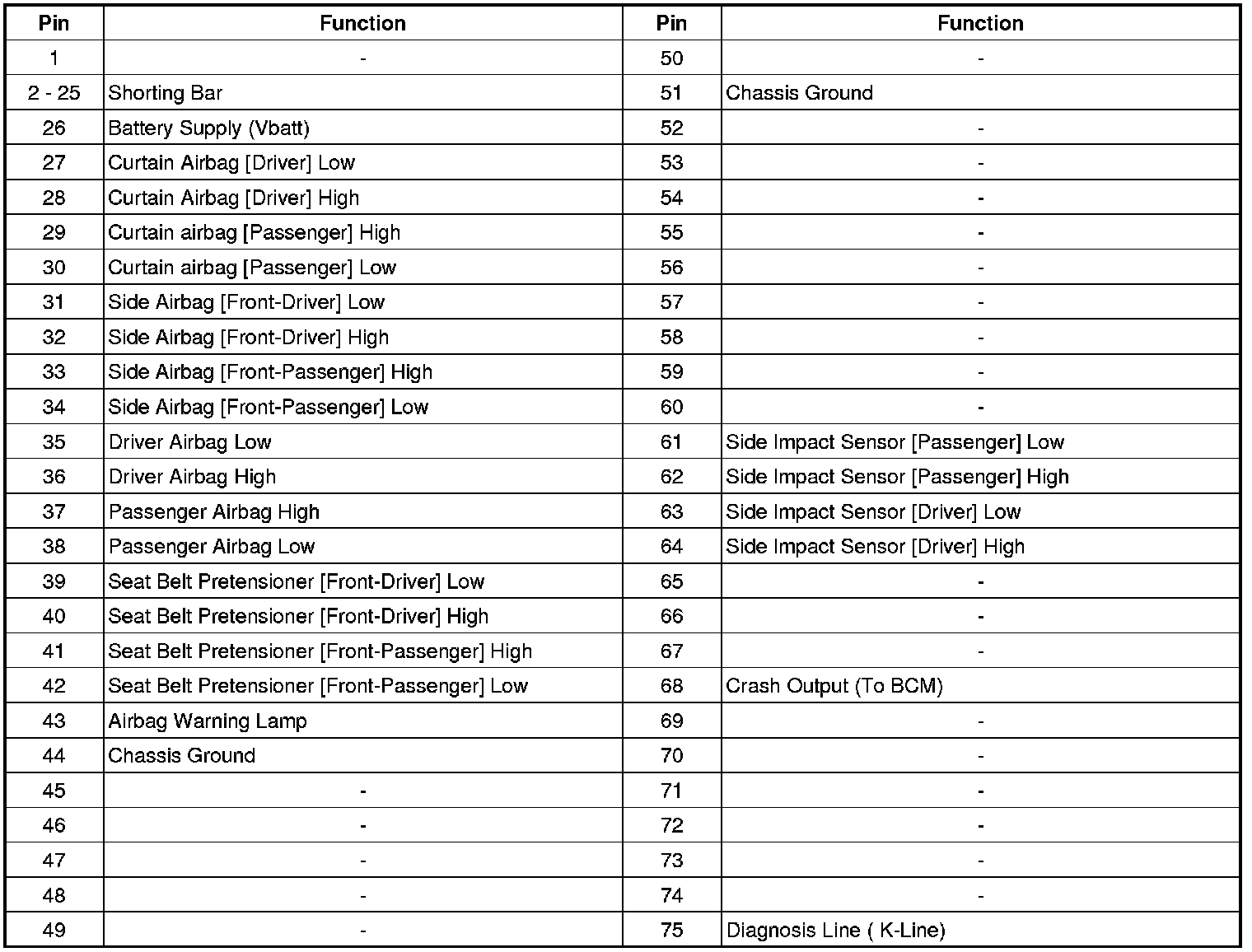

SRSCM CONNECTOR TERMINAL
