ESP(Electronic Stability Program) System





CIRCUIT DIAGRAM - ESC(1)





CIRCUIT DIAGRAM - ESC(2)

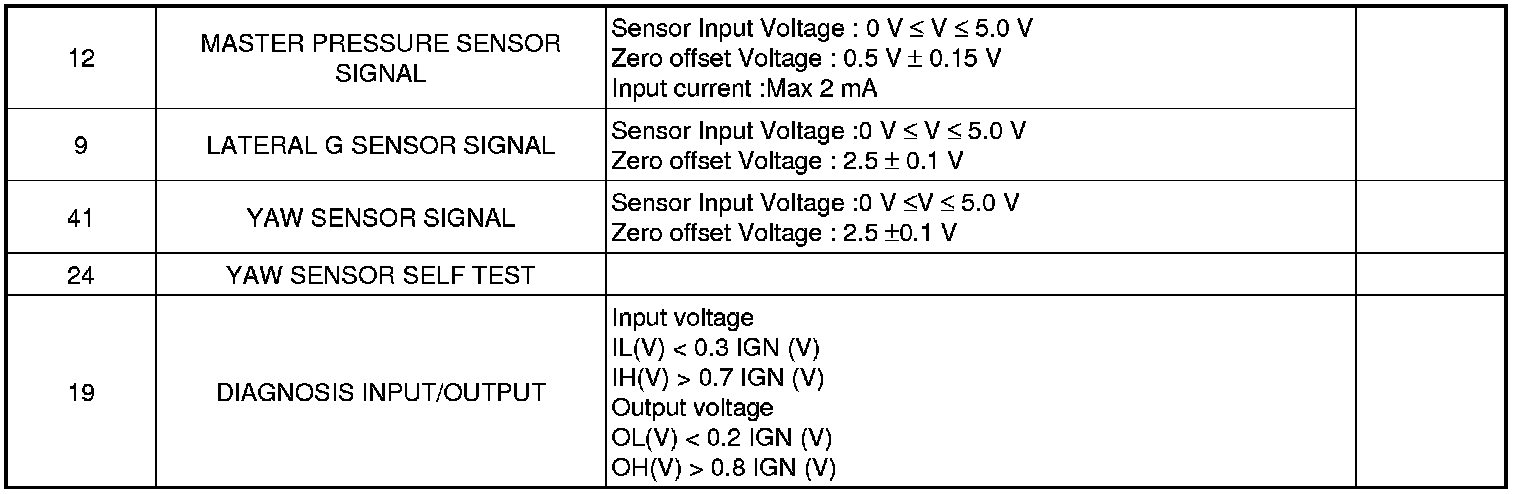

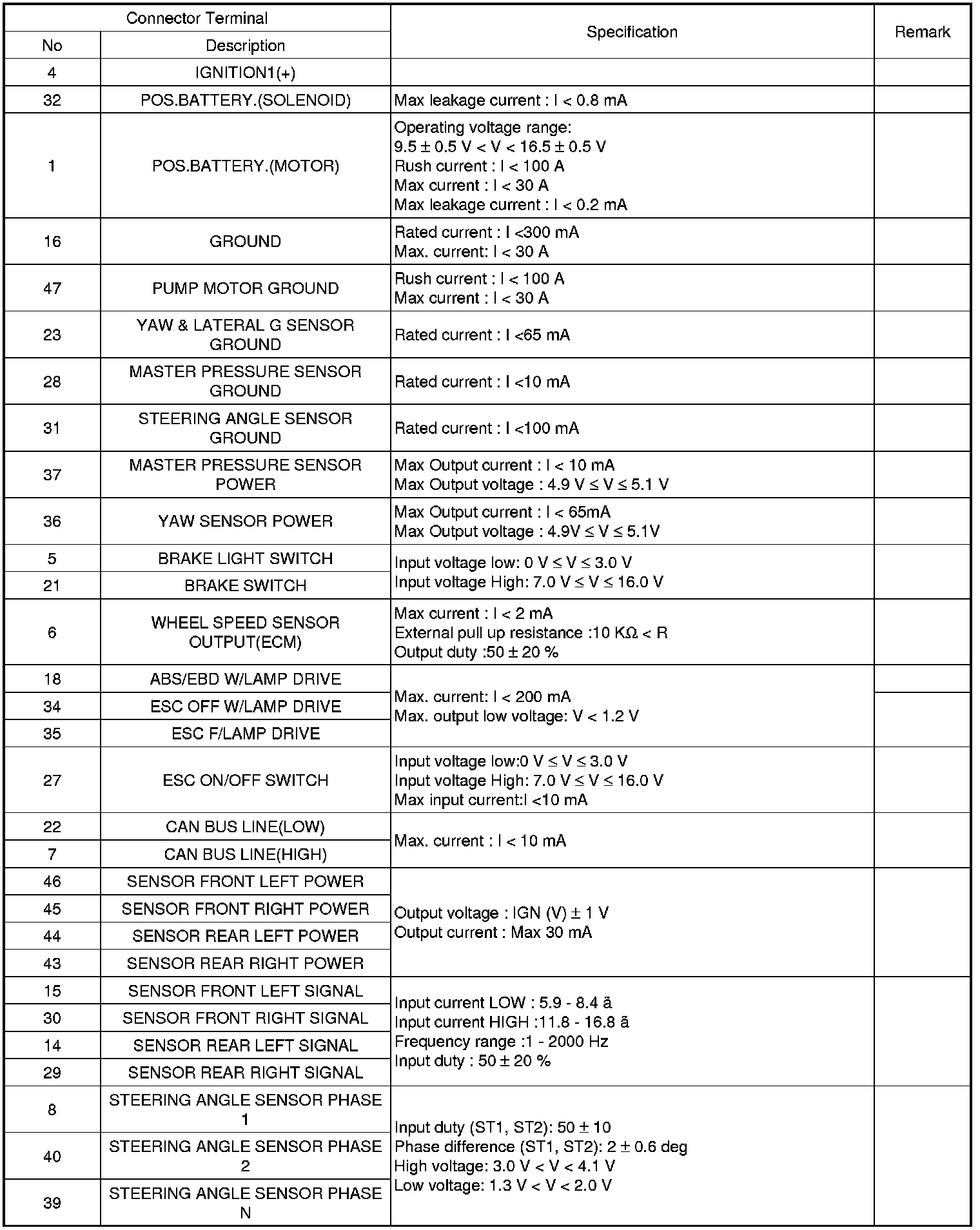

ESC connector input/output
