Touch Sensor Circuit

Touch Sensor Circuit

DESCRIPTION

The touch sensor are built into the door outside handles of the all doors. This circuit receives a signal indicating whether a touch sensor signal is detected.

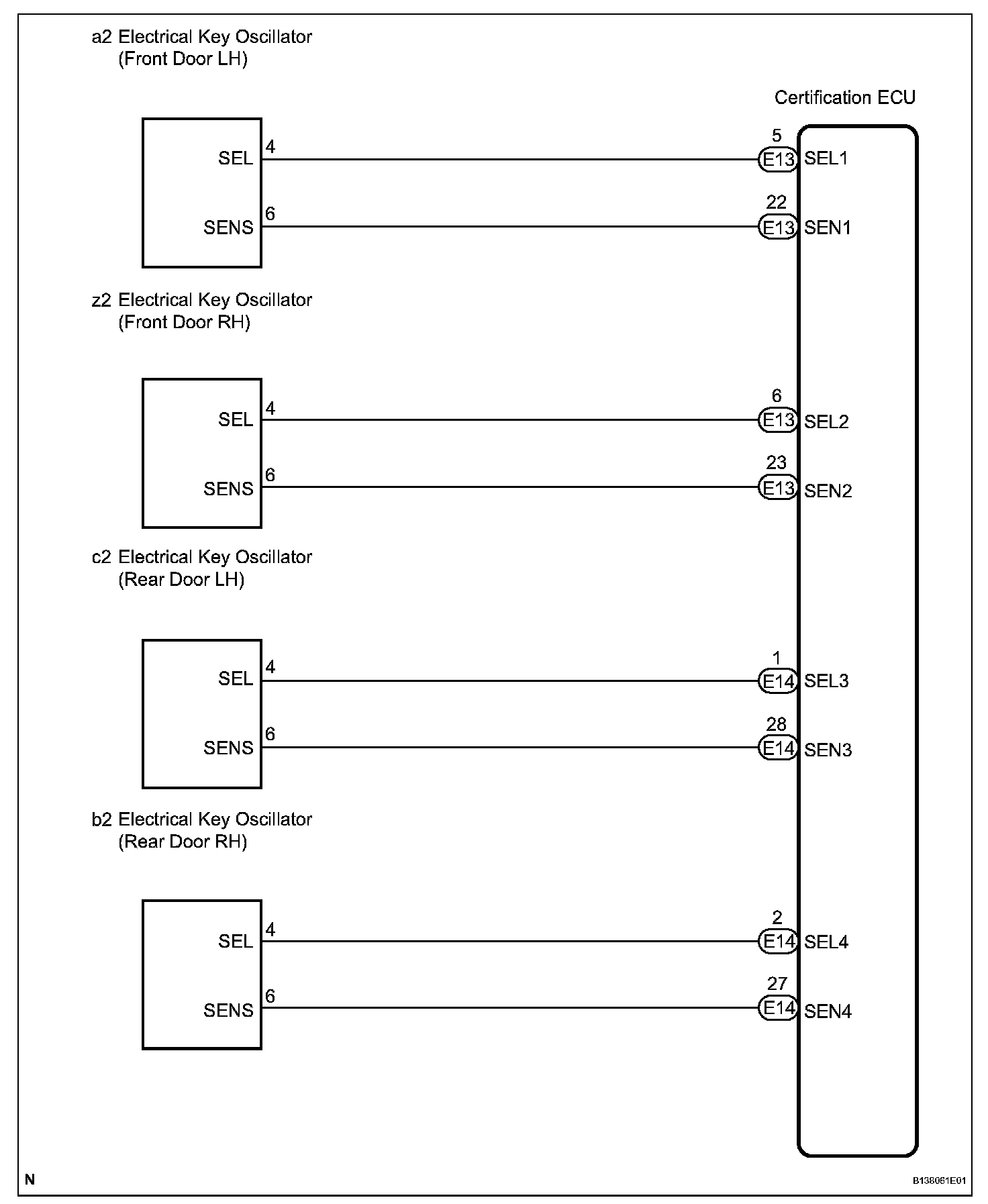

Wiring Diagram:

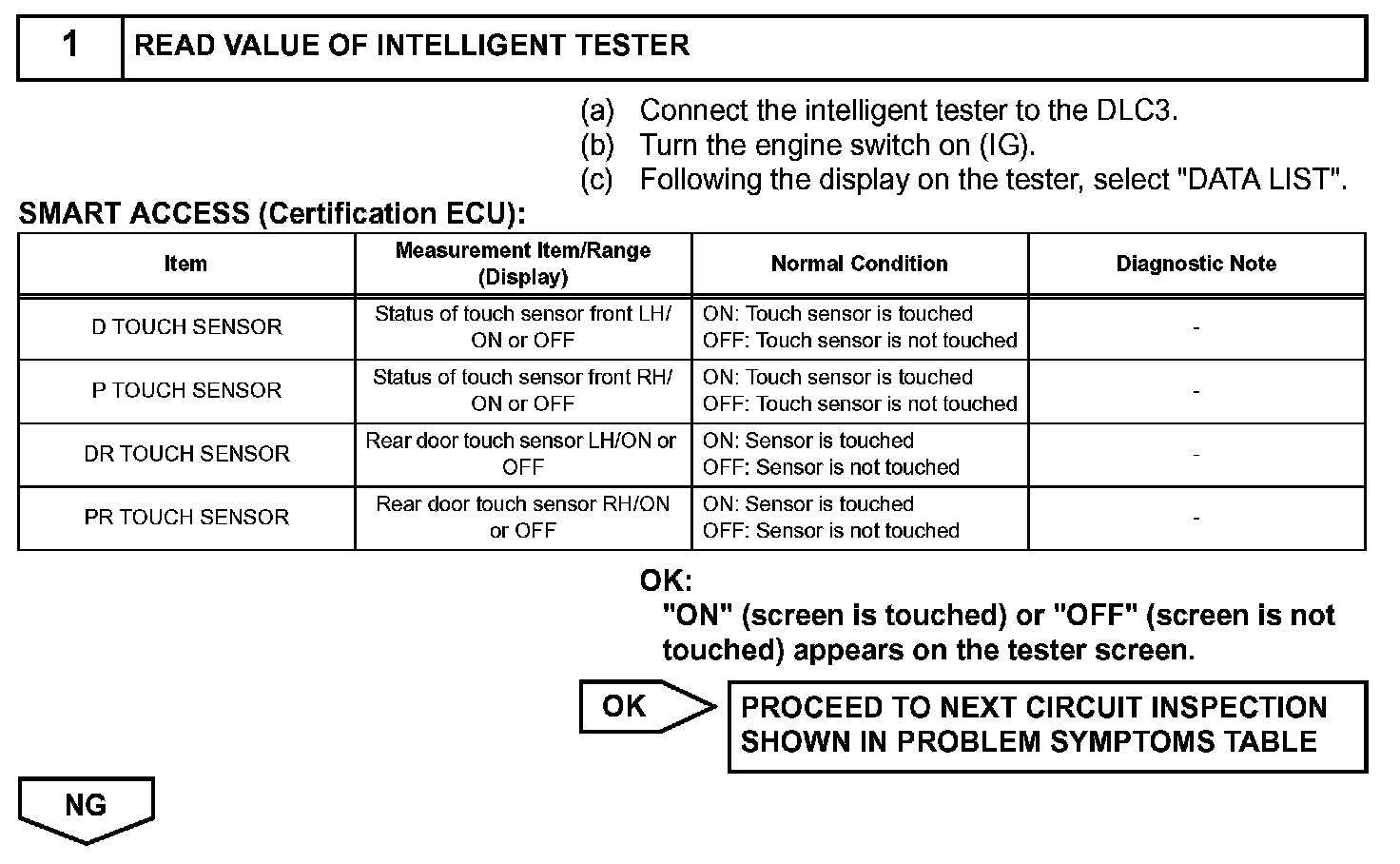

Step 1:

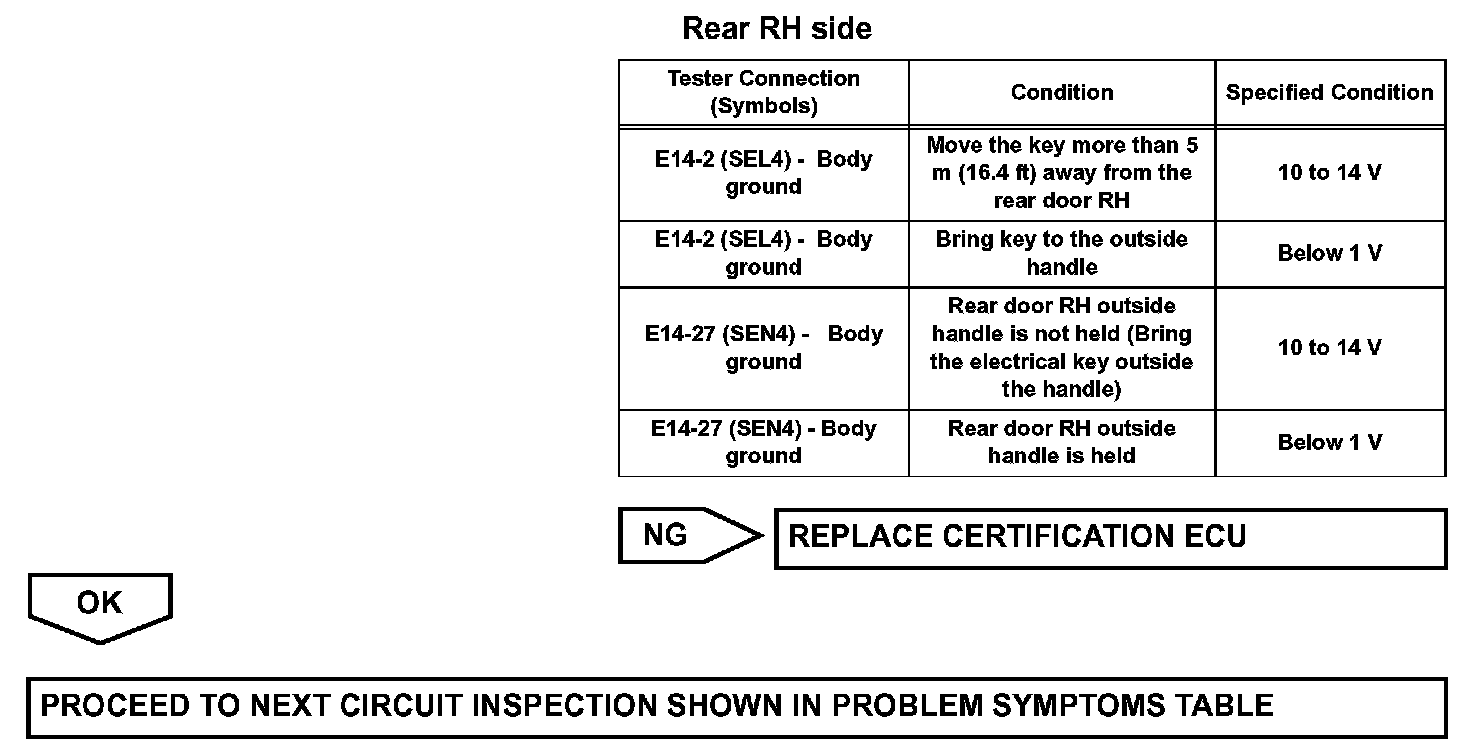

Step 2-3:

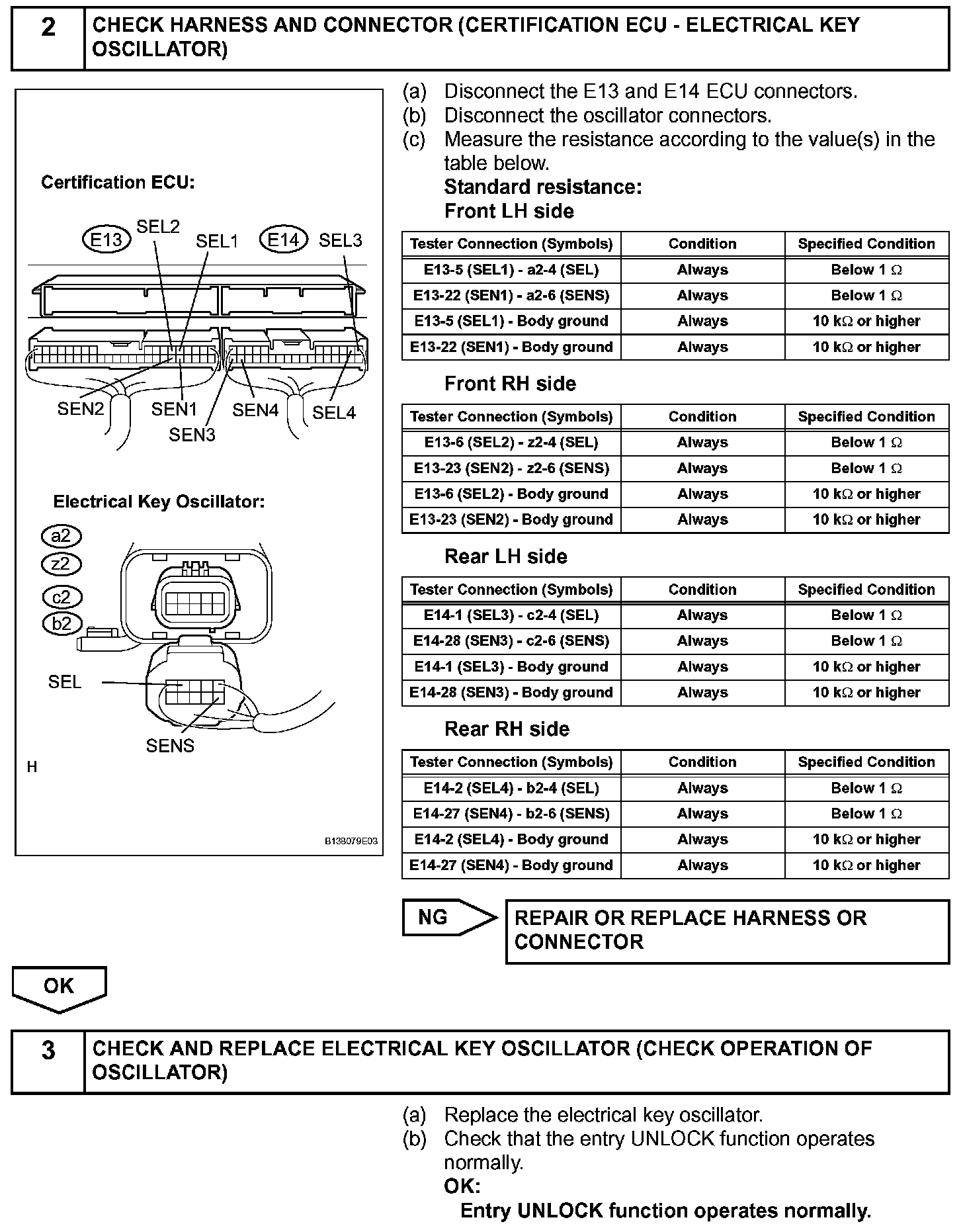

Step 3 (Continued)-4:

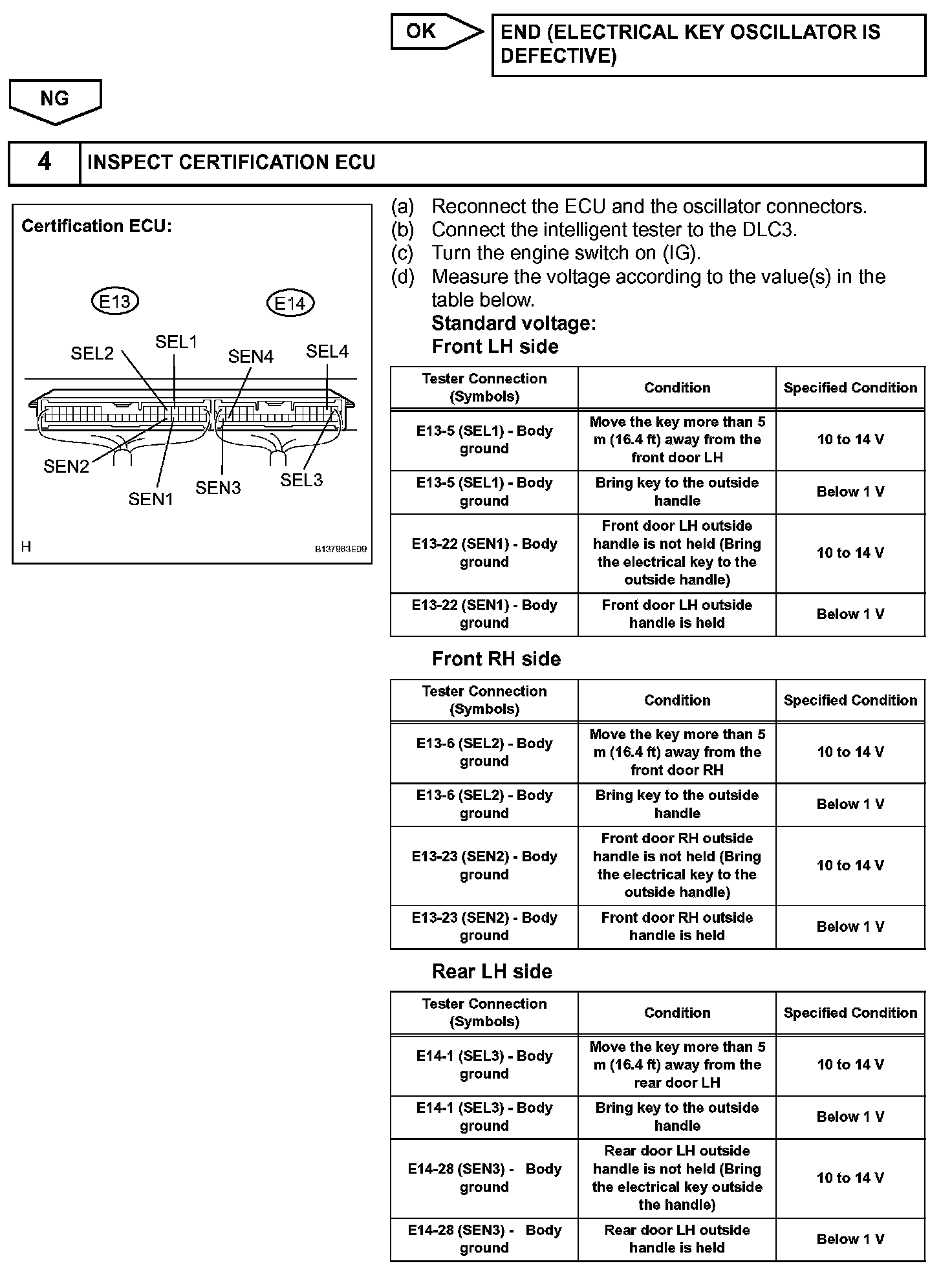

Step 4 (Continued):

INSPECTION PROCEDURE
