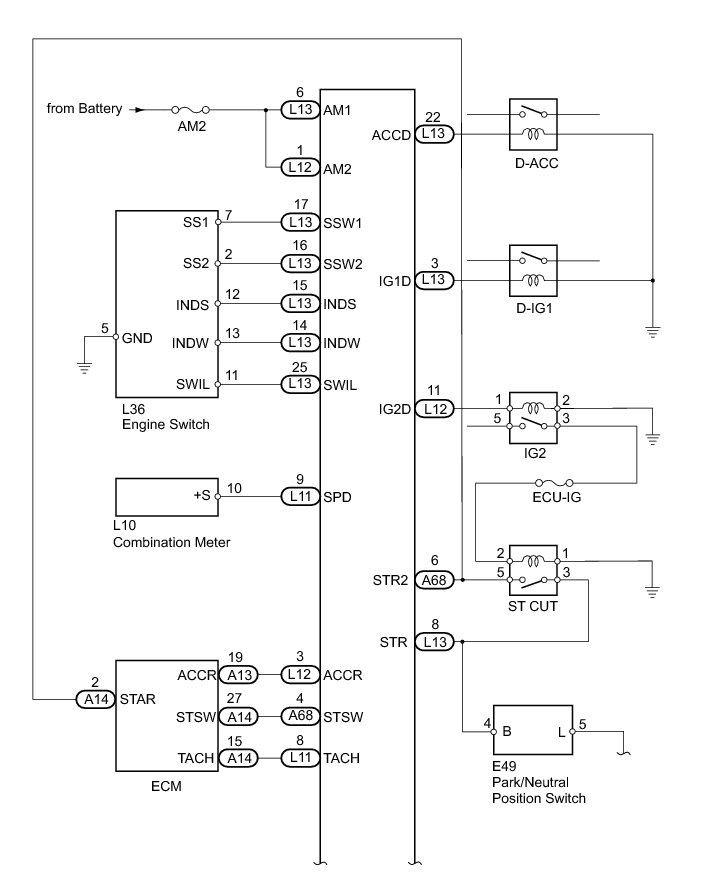

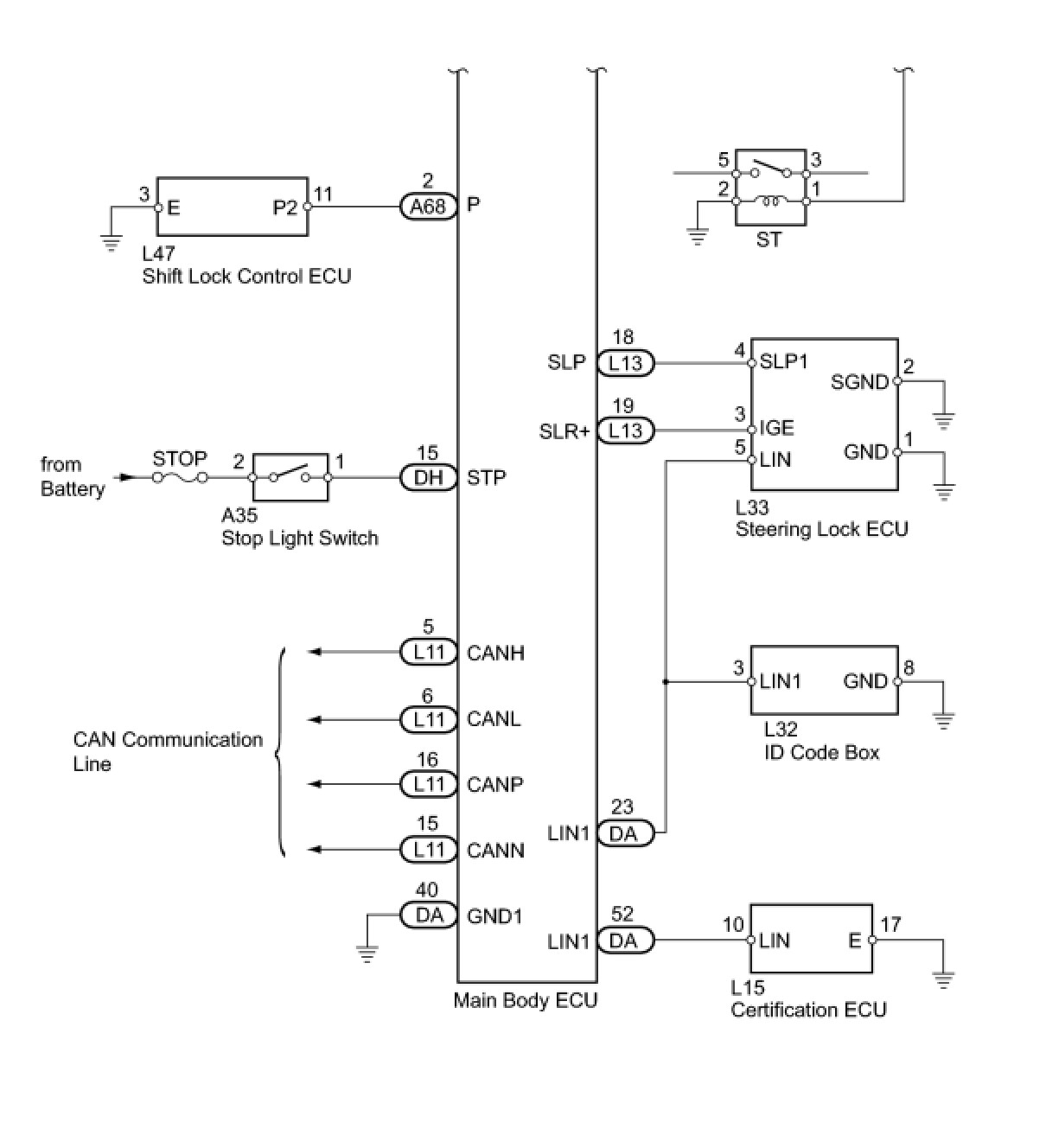

Home >> Lexus >> 2012 >> LS 460 AWD V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation >> Smart Access System With Push-Button Start >> System Diagram
