Home >> Lincoln >> 1982 >> Continental V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Fig. 73 Calib. Code 2-20R-R02 Exc. High Alt.

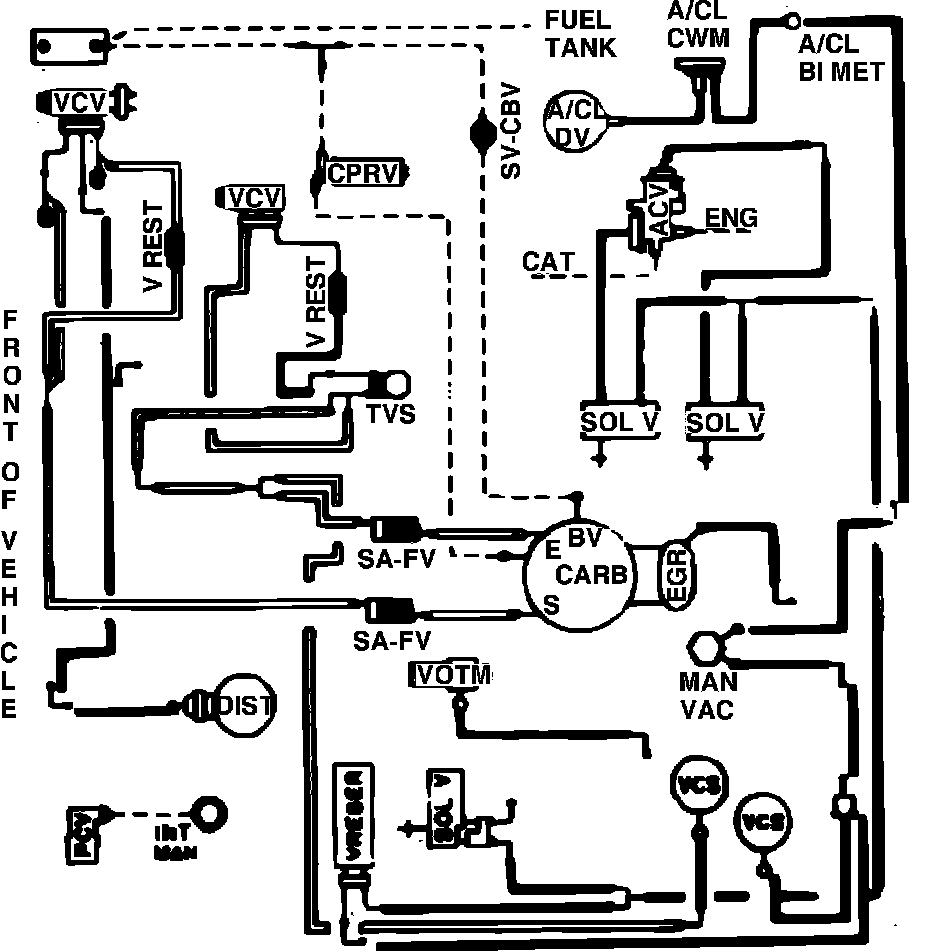

Fig. 73 Calib. Code 2-20R-R02 Exc. High Alt.

Vacuum hose routing:
