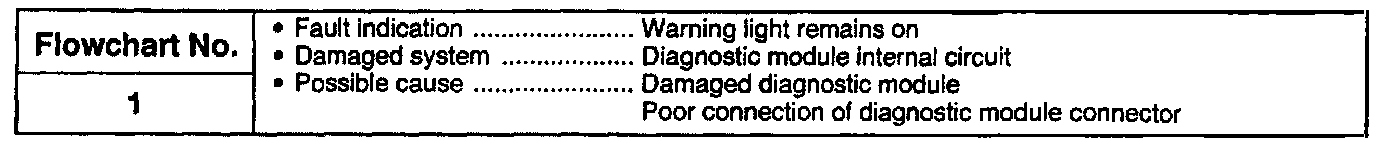

Flowchart 1, Damaged Diagnostic Module

SYMPTOMS

1. Deactivate the audio antitheft system if installed.
2. Disconnect the negative battery cable.

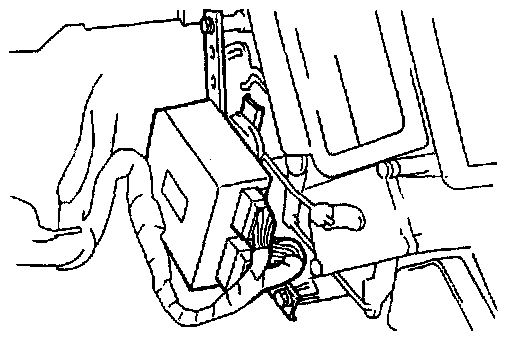

3. Make sure the diagnostic module connectors are properly connected.

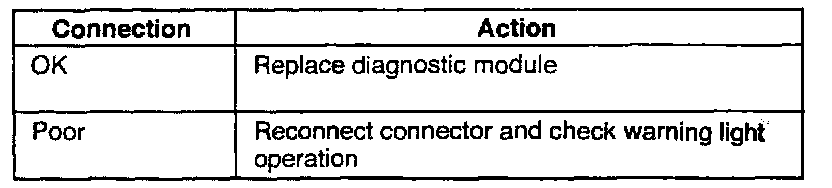

ACTION
