Primary Shaft Components Assembly

PRIMARY SHAFT COMPONENTS ASSEMBLY
1. Assemble in the order shown in the figure.

STANDARD TYPE

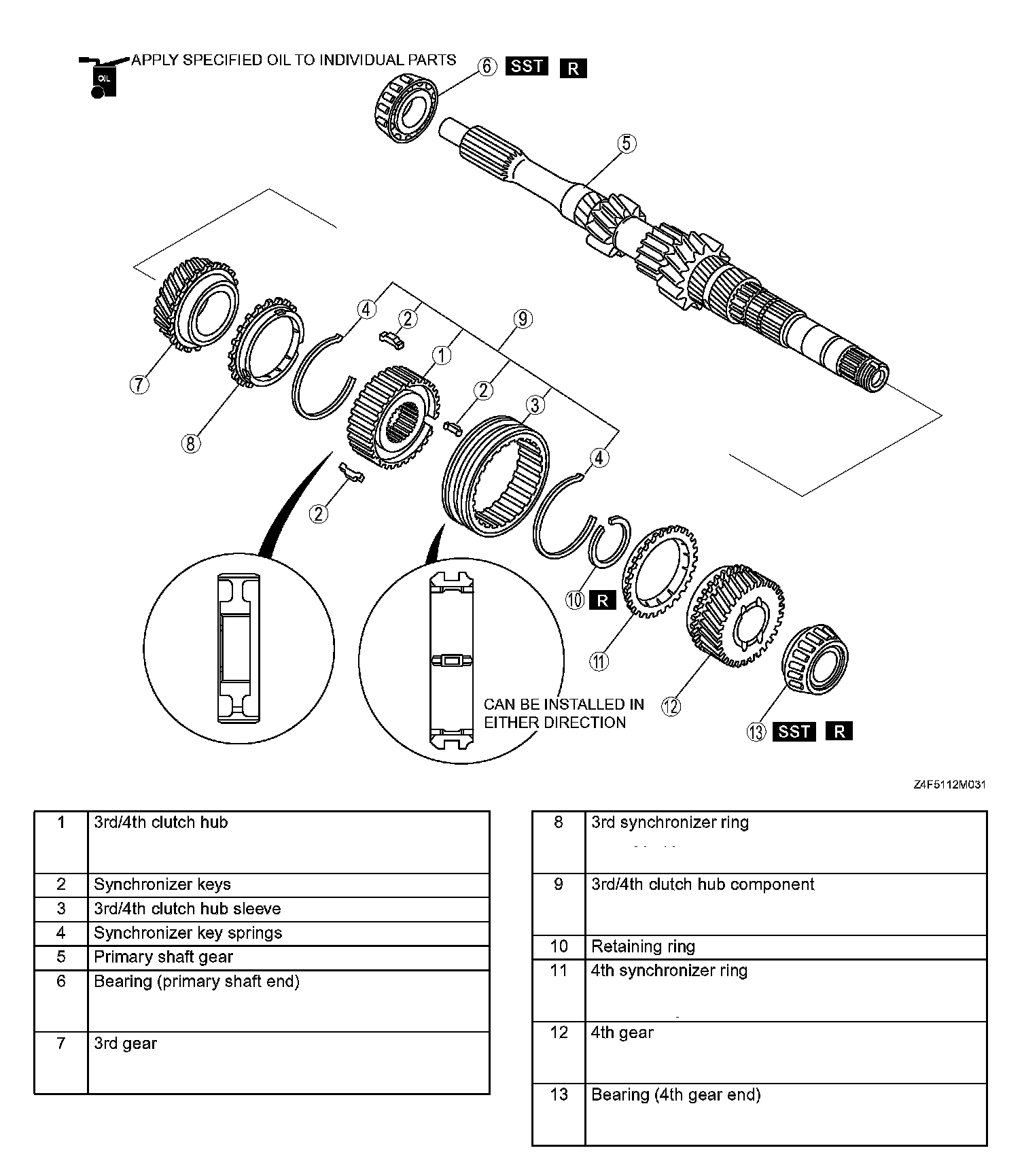

Primary Shaft Components Assembly (Standard Type):





DOUBLE CONE SYNCHRONIZER TYPE

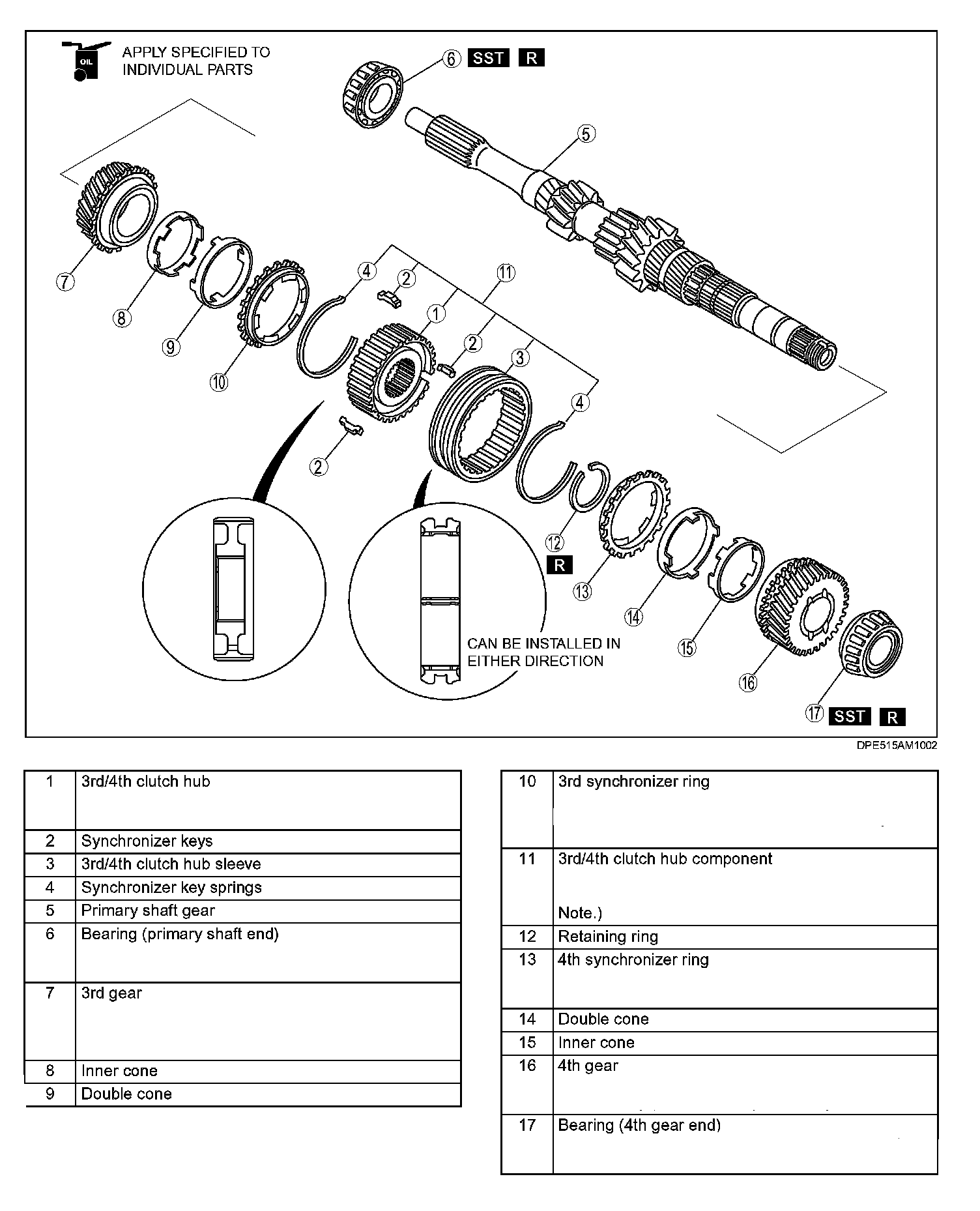

Primary Shaft Components Assembly (Double Cone Synchronizer Type):
