PID/Data Monitor Inspection[Immobilizer System (Advanced Keyless System)]

PID/DATA MONITOR INSPECTION[IMMOBILIZER SYSTEM (ADVANCED KEYLESS SYSTEM)]

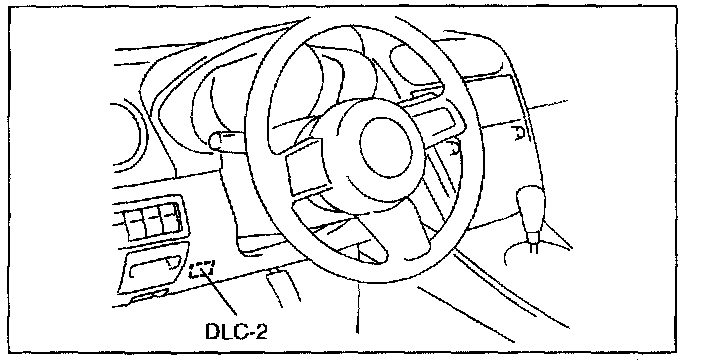

1. Connect the M-MDS to the DLC-2.
2. Display the PID/data monitor items.
- Verify a displayed item according to the PID/data monitor table.

3. Disconnect the M-MDS.
