On-Board Diagnostic Wiring Diagram - Two Step Deployment Control System

ON-BOARD DIAGNOSTIC WIRING DIAGRAM [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

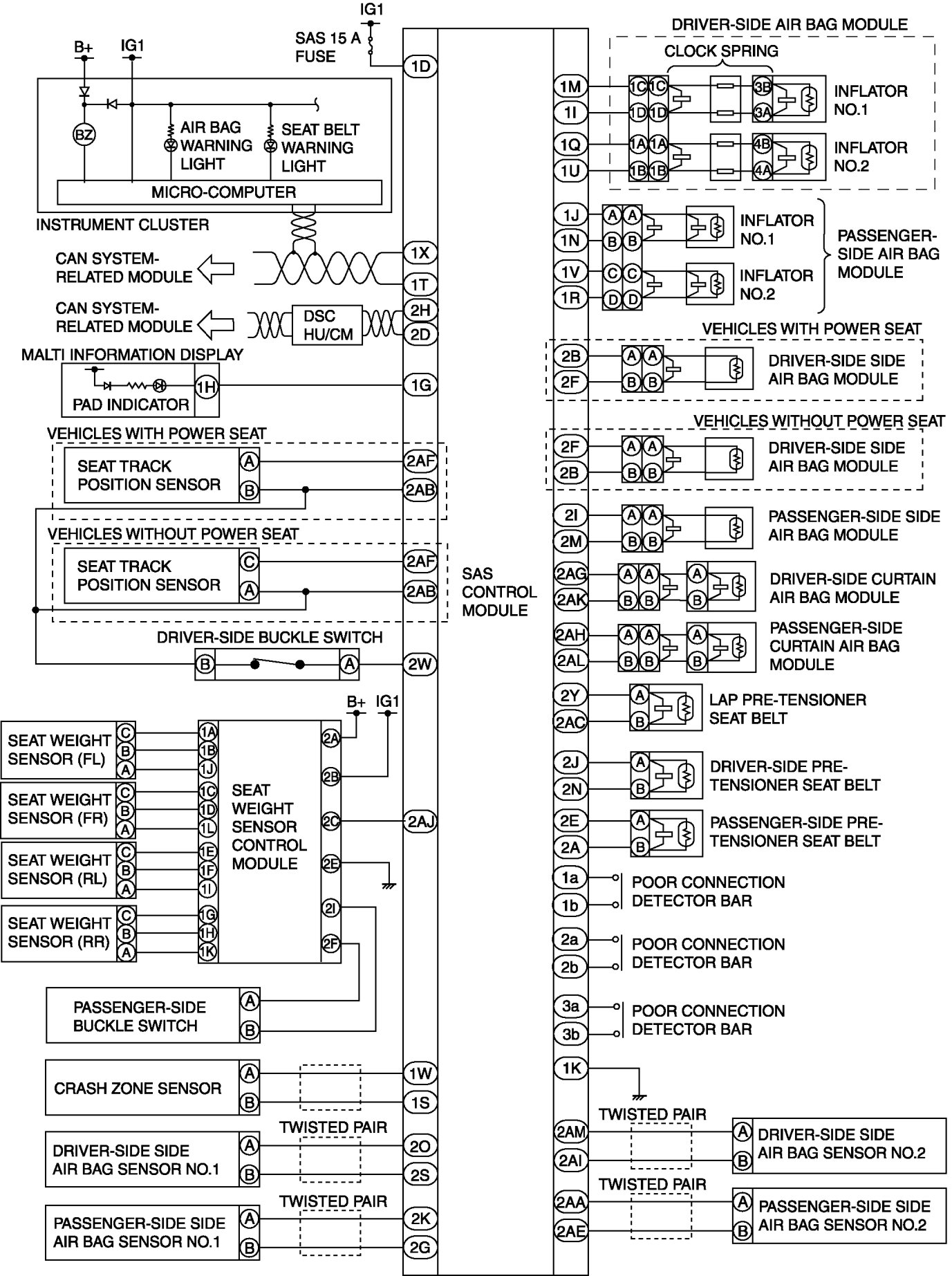

Vehicles With DSC

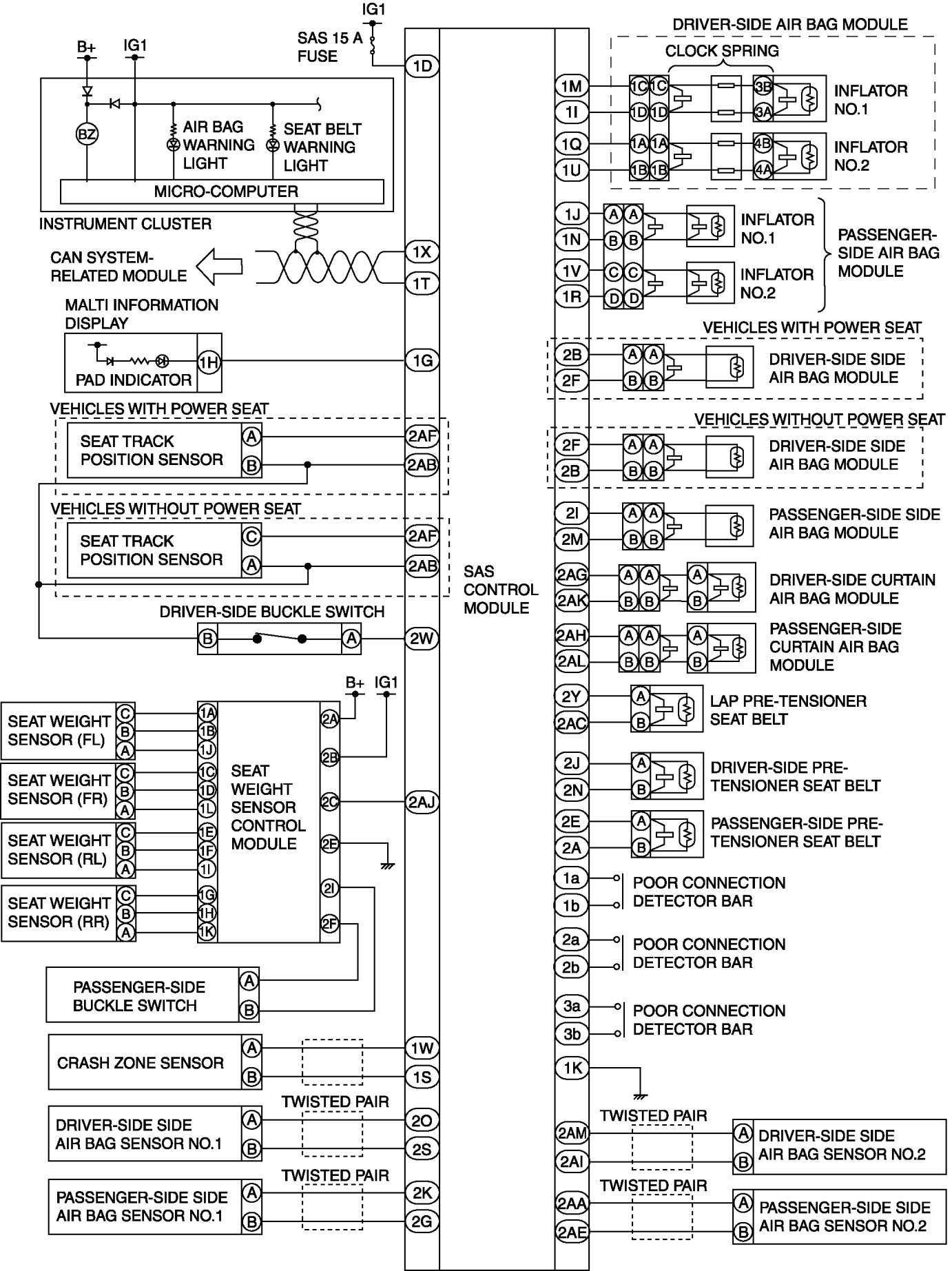

Vehicles Without DSC
