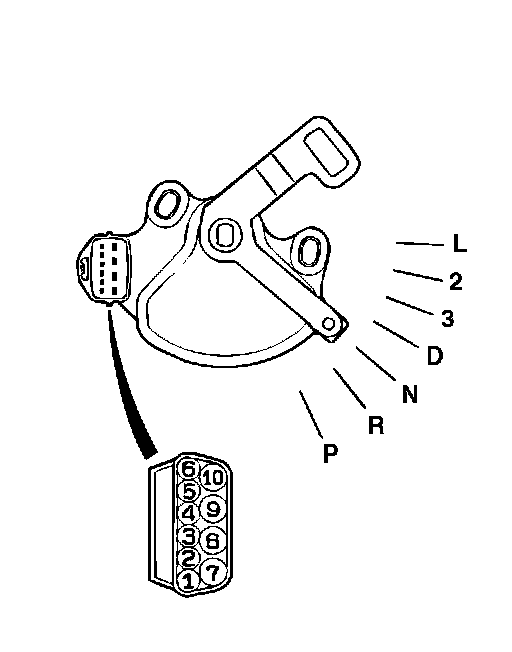

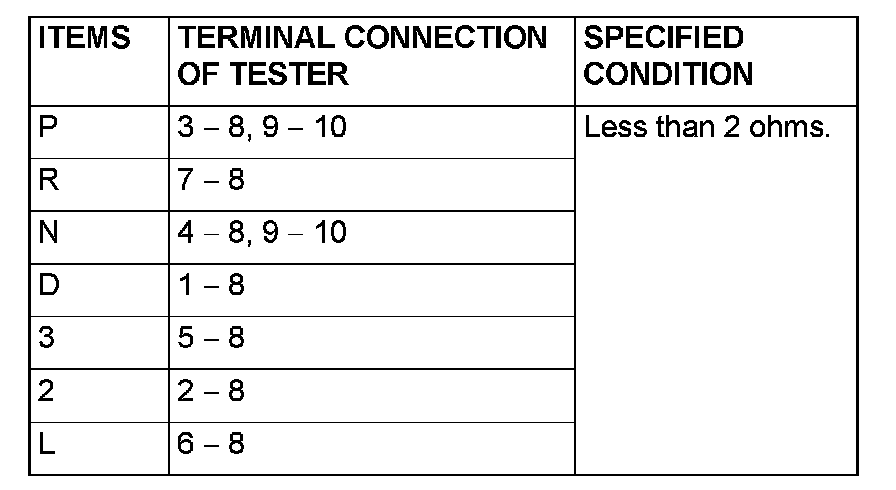

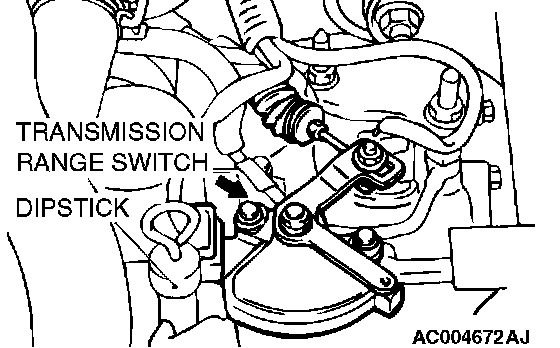

Transmission Range Switch Check

TRANSMISSION RANGE SWITCH CHECK











NOTE: For Vehicles with sport mode, four positions (P, R, N, D) are used.
