Body Control Module (BCM)

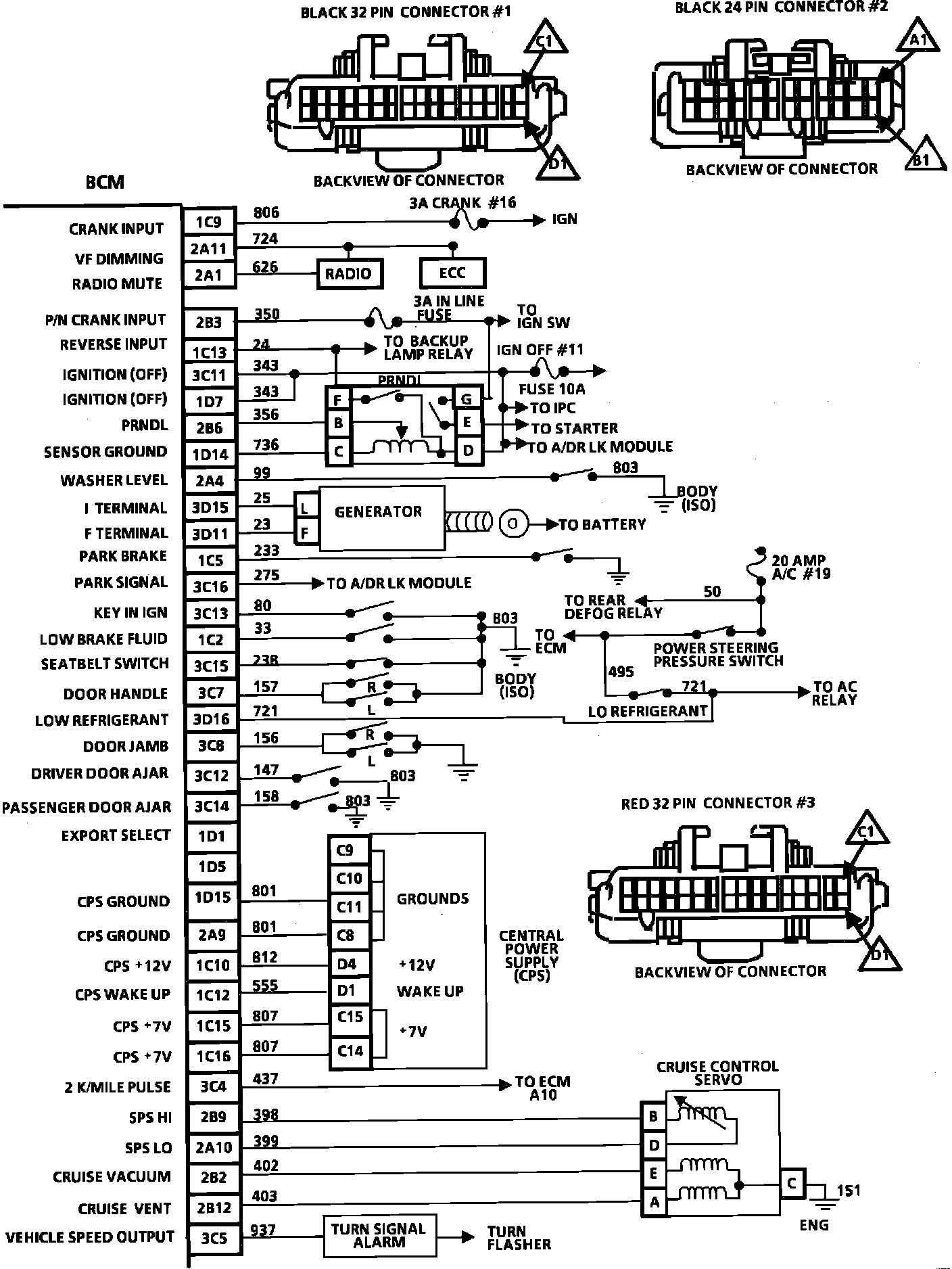

BCM Wiring Diagram (Part 1 of 2):

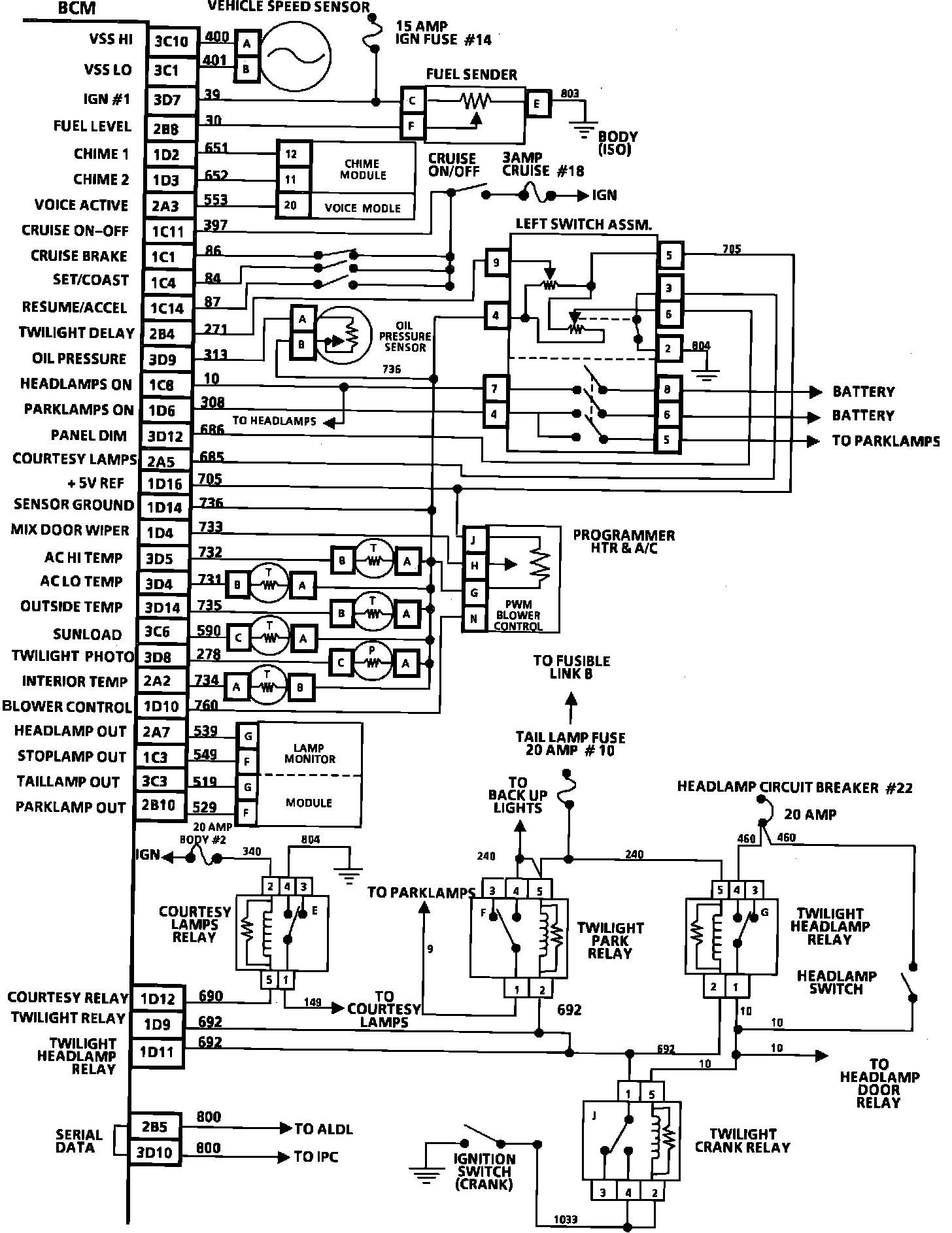

BCM Wiring Diagram (Part 2 of 2):

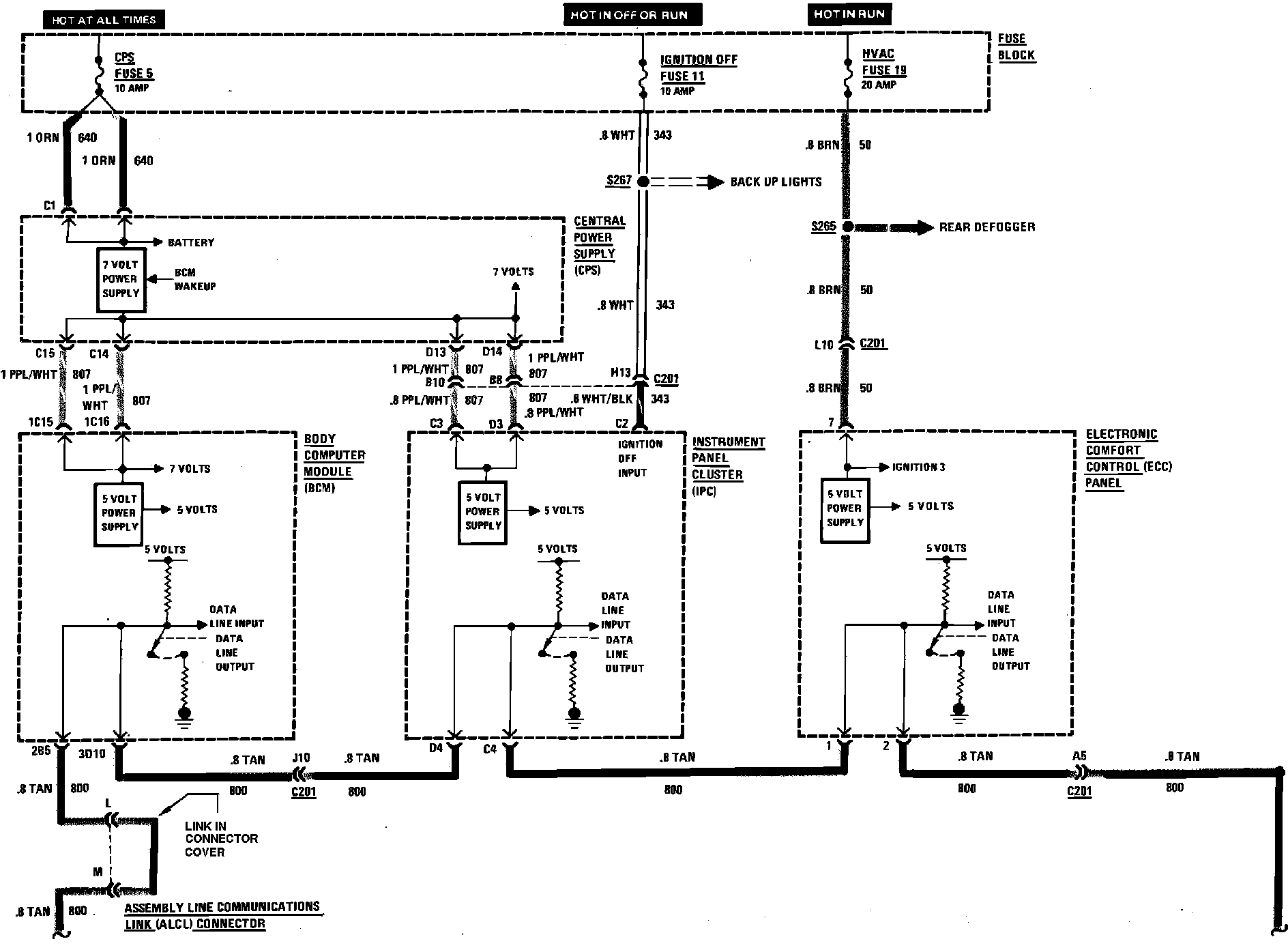

Body Computer Module Wiring Circuit (Data Line, Part 1 Of 2):



Body Computer Module Wiring Circuit (Data Line, Part 2 Of 2):
