Home >> Pontiac >> 2006 >> G6 L4-2.4L VIN B >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> HVAC System - Automatic

HVAC System - Automatic

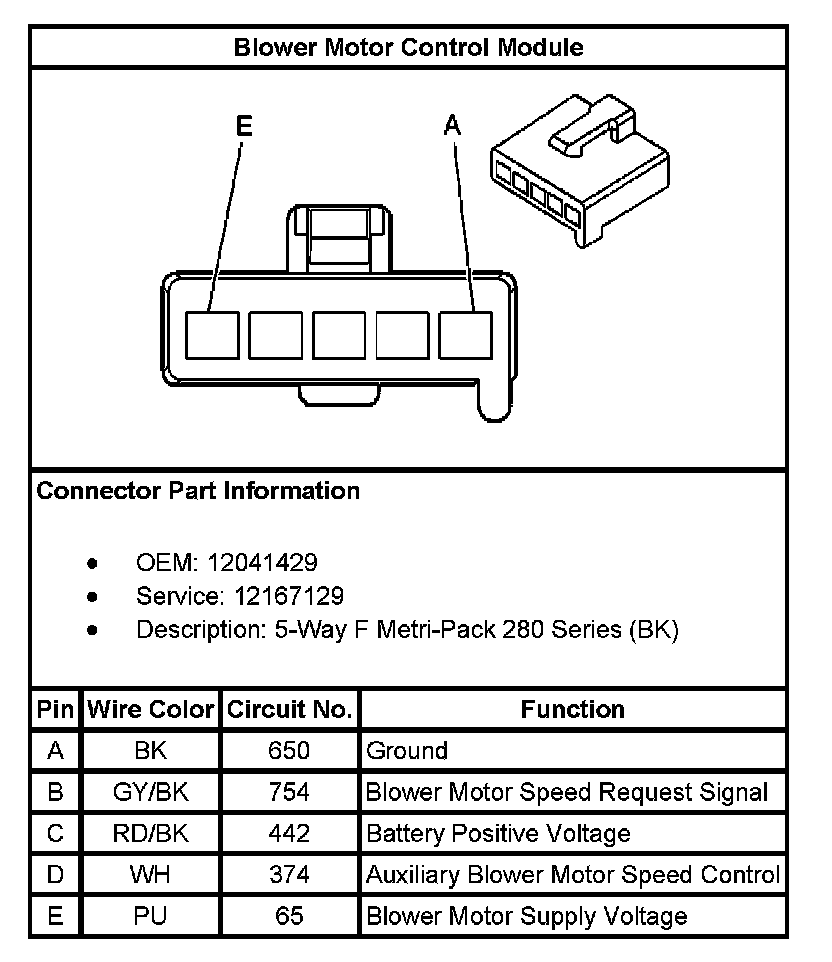

Blower Motor Control Module:
