Home >> Pontiac >> 2006 >> Pursuit (CANADA) L4-2.4L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Automatic Transmission/Transaxle >> Fluid Pressure Sensor/Switch, A/T

Fluid Pressure Sensor/Switch, A/T

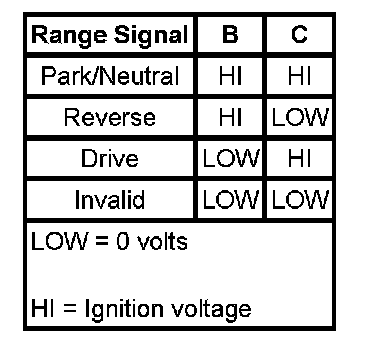

Transmission Fluid Pressure (TFP) Manual Valve Position Switch Logic:
