Home >> Pontiac >> 2007 >> Grand Prix V8-5.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Door Lock Switch

Power Door Lock Switch

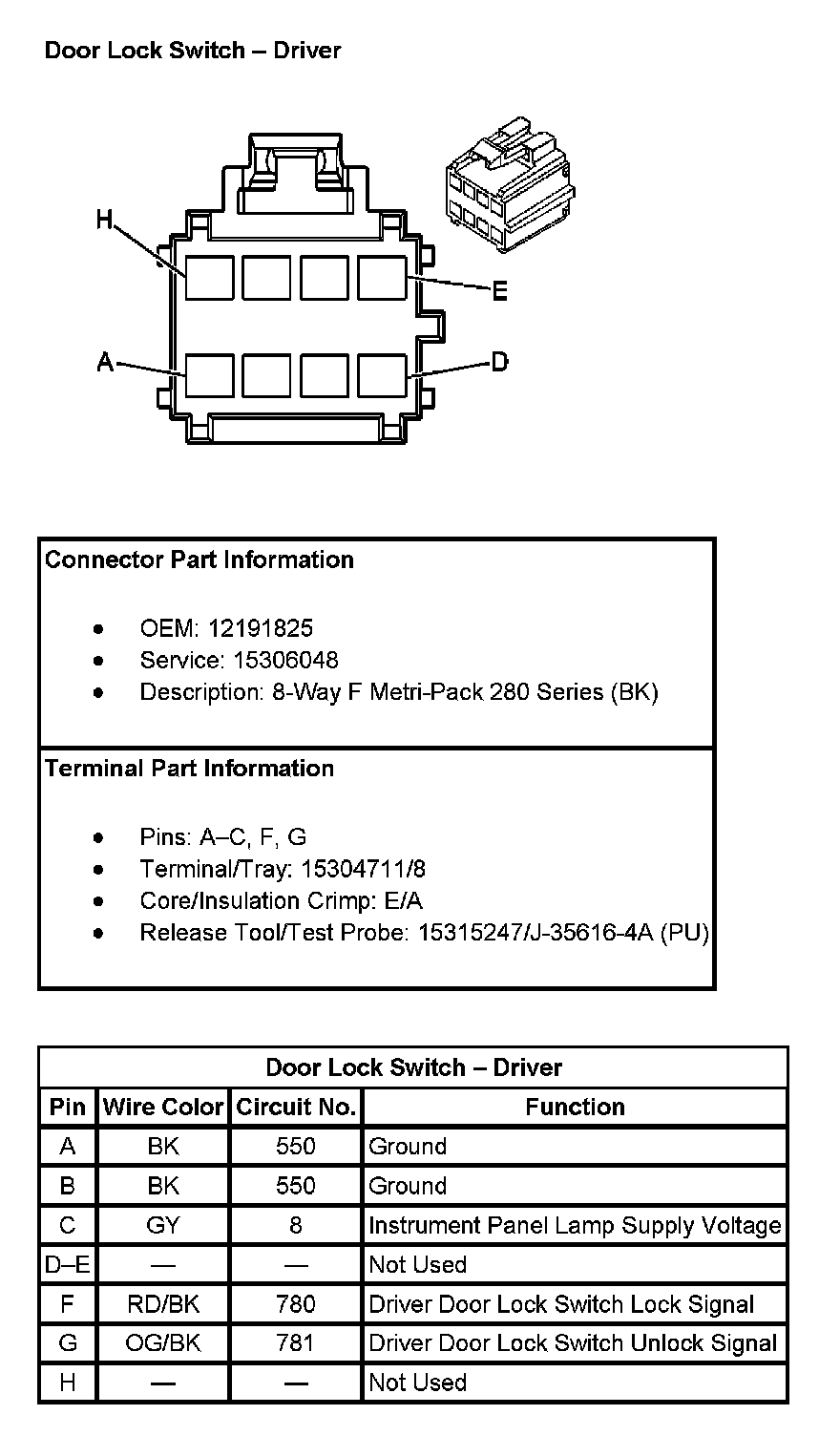

Door Lock Switch - Driver:

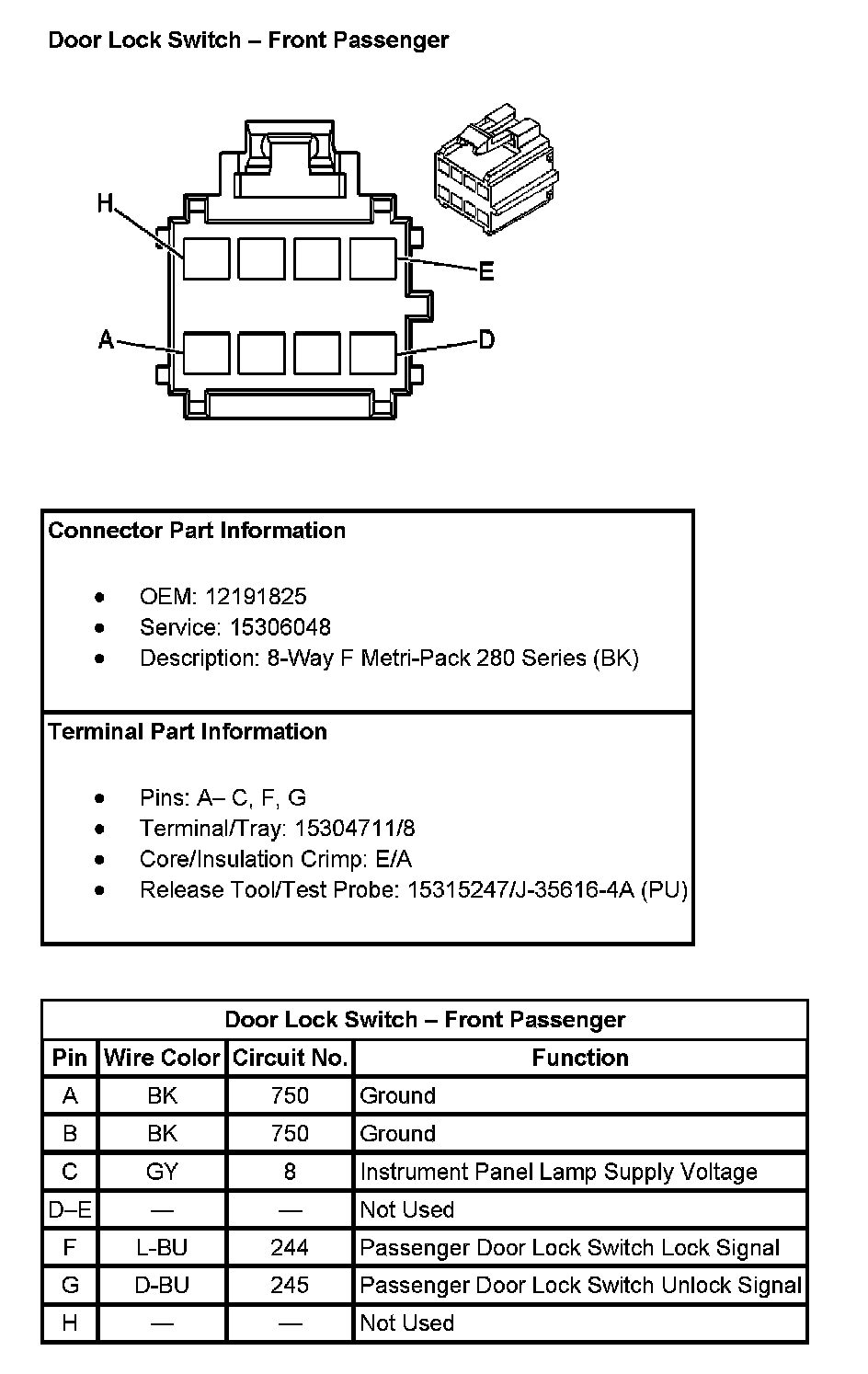

Door Lock Switch - Front Passenger:
