PCM2 Gateway Component Arrangement

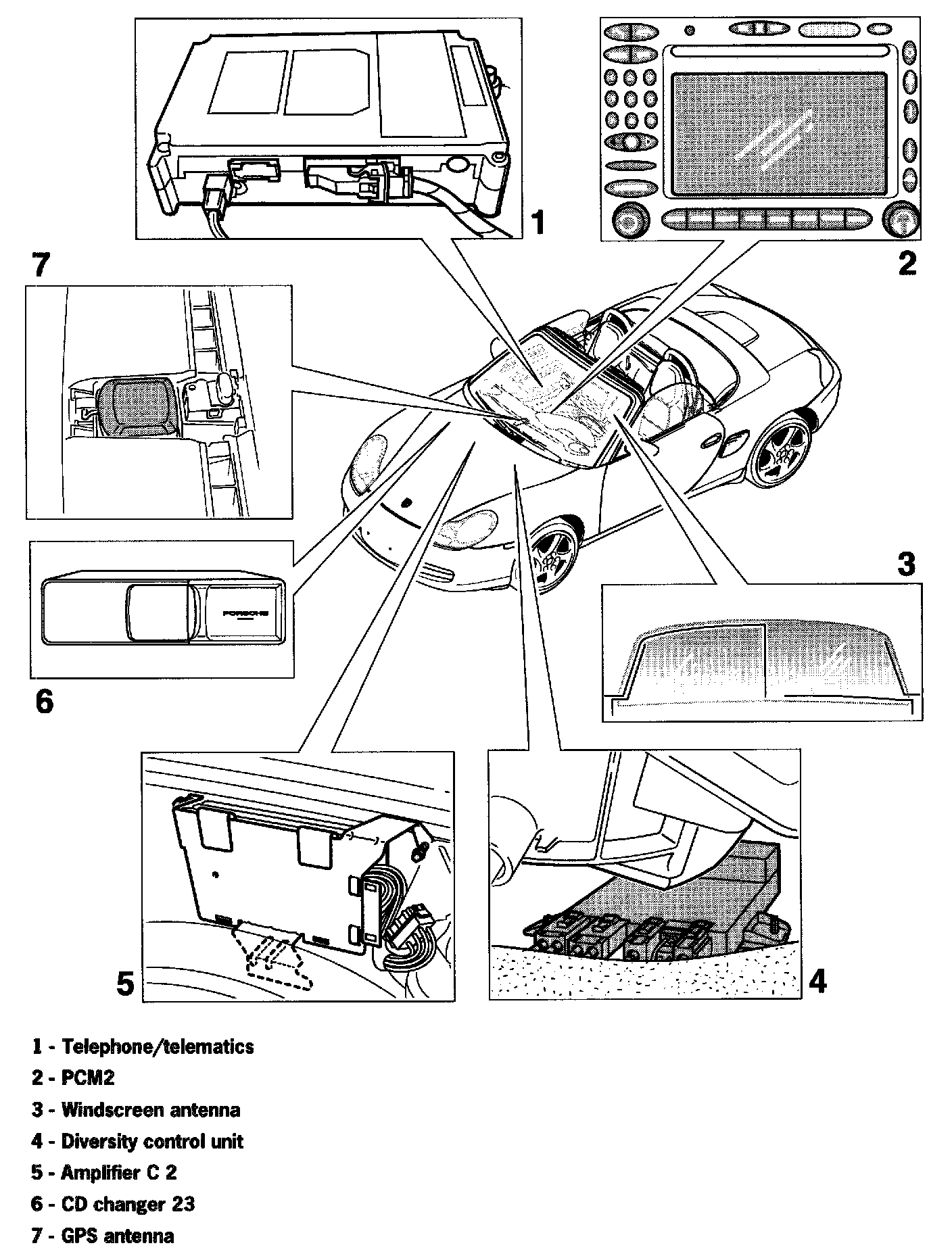

Component Arrangement - Gateway

PCM2/CDR23

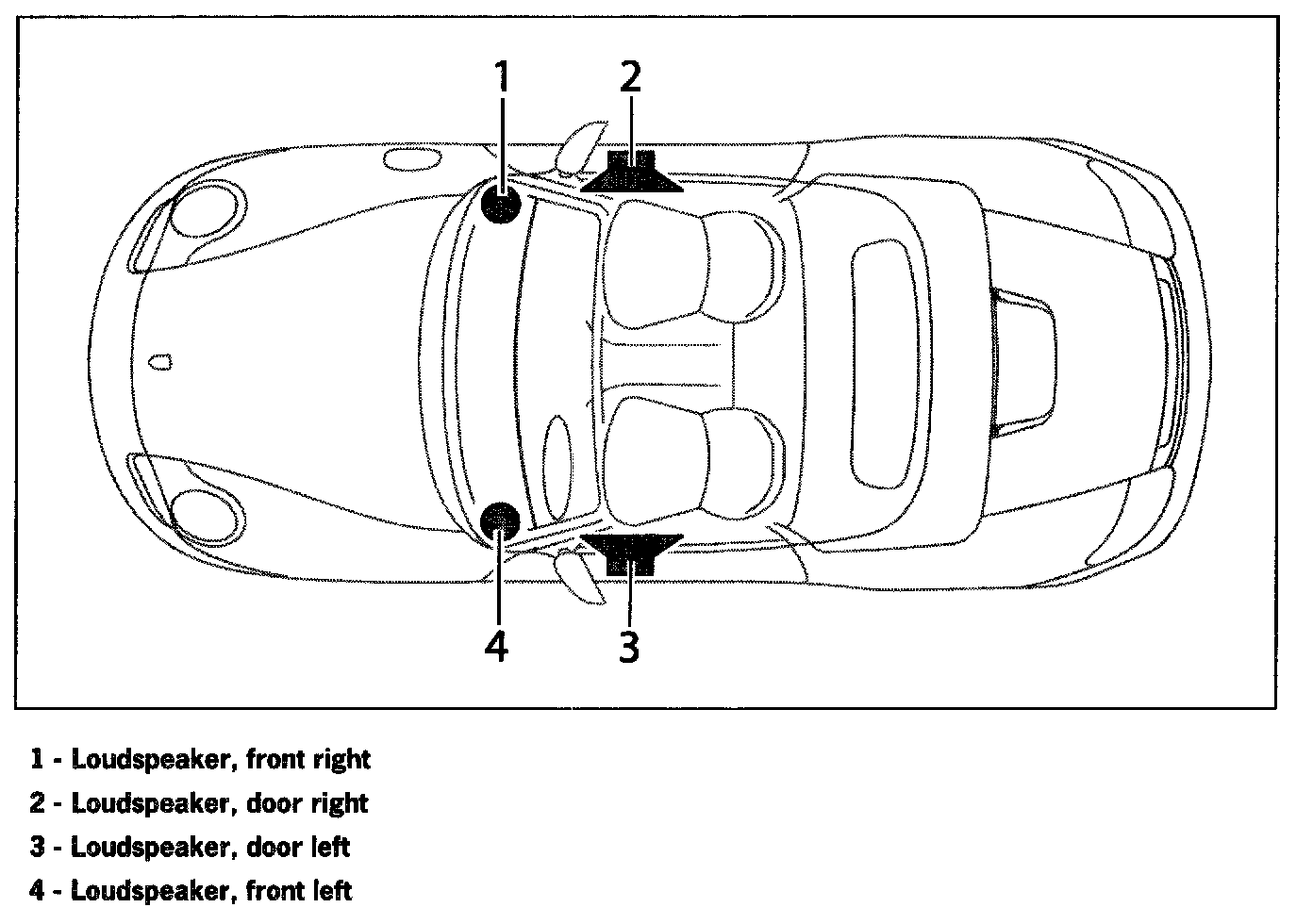

Basic Loudspeaker System

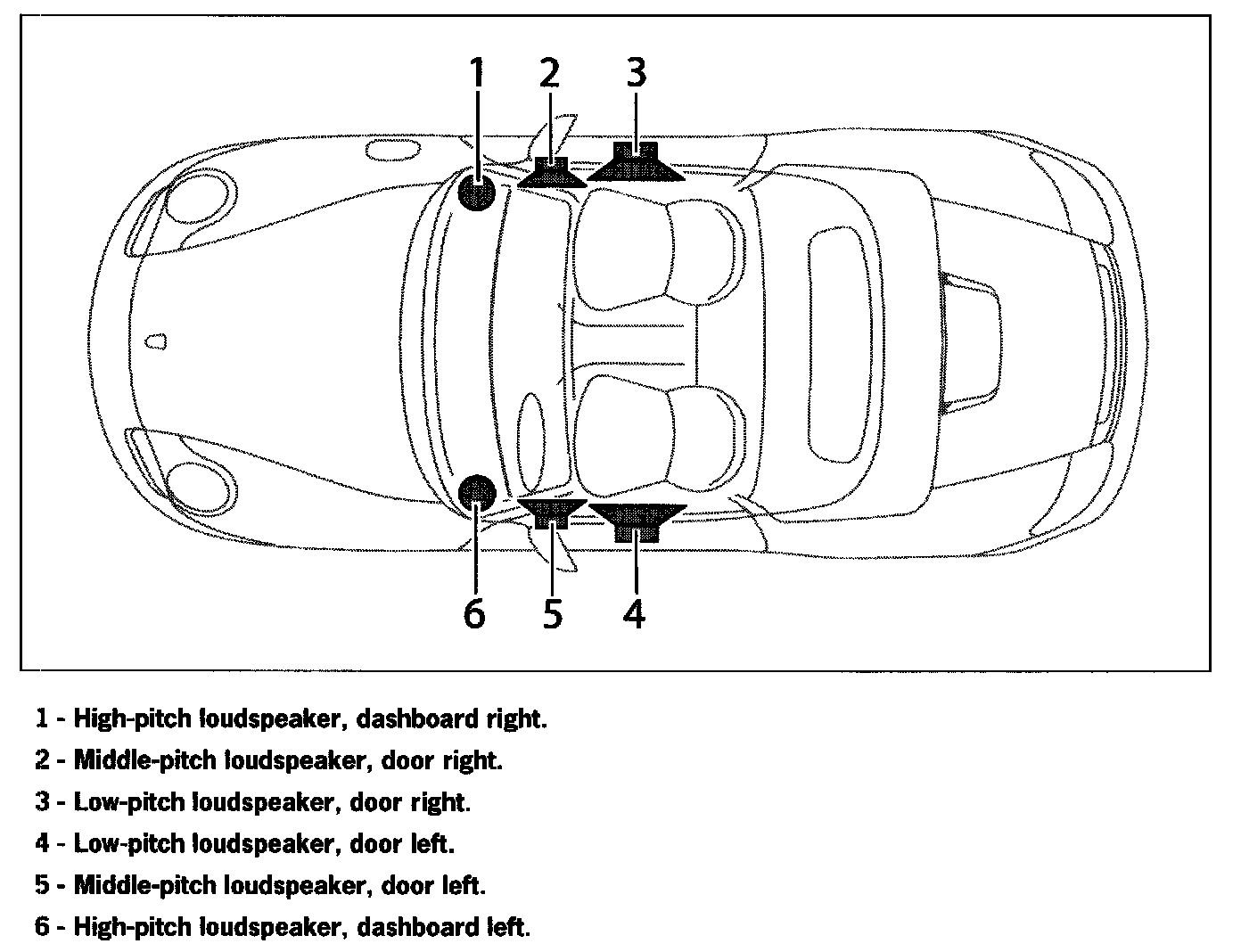

Loudspeaker Sound Package

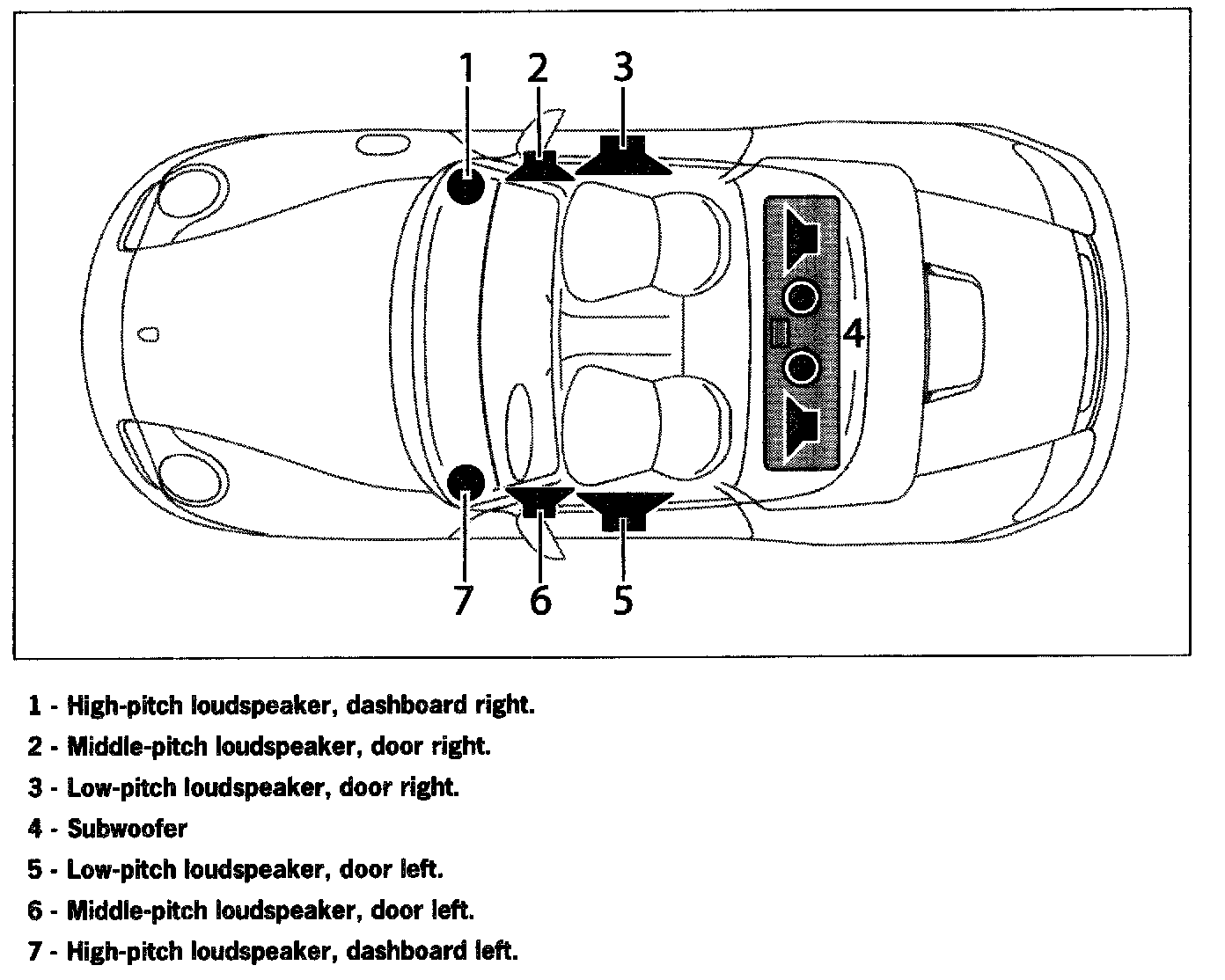

High-End Loudspeaker
