4T45-E - Automatic Transaxle
4T45-E - Automatic Transaxle

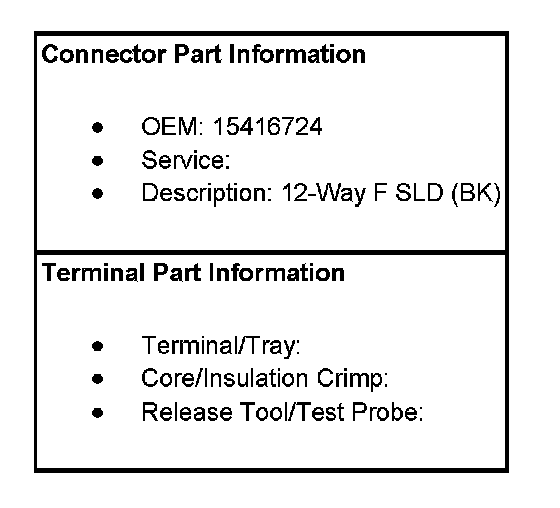

Automatic Transmission Related Connector End Views

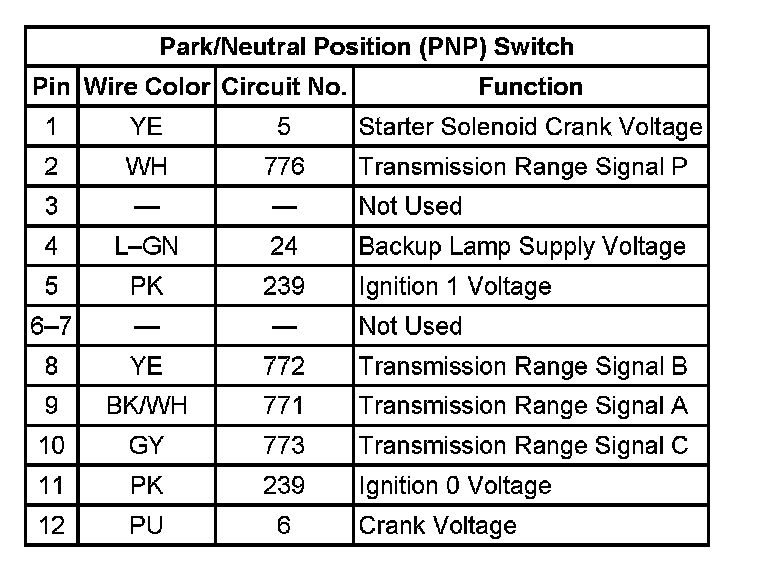

Park/Neutral Position (PNP) Switch:
