Brake Fluid Level Sensor/Switch: Testing and Inspection

Brake Fluid Level Switch Inspection

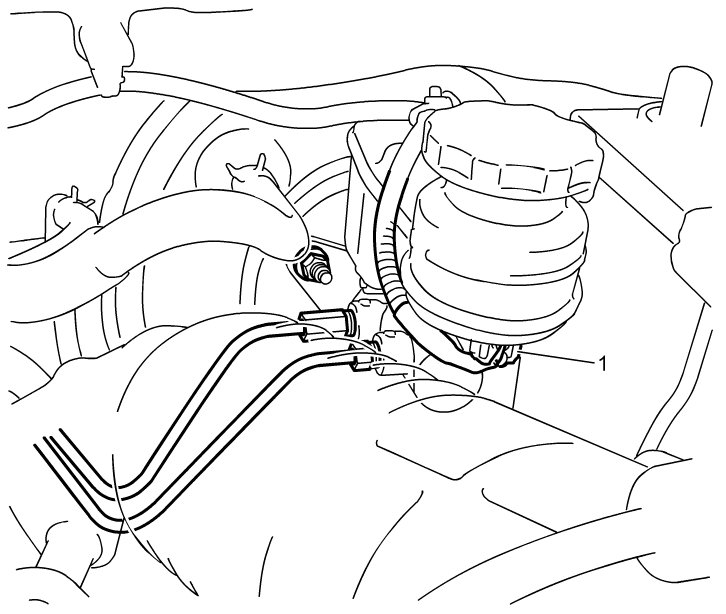

Check for continuity between terminals of brake fluid level switch connector (1). If faulty, replace reservoir.

Brake fluid level switch specification
MAX position (float up): No continuity
MIN position (float down): Continuity exists
