Installation

2AR-FE STARTING: ENGINE SWITCH: INSTALLATION

1. INSTALL ENGINE SWITCH

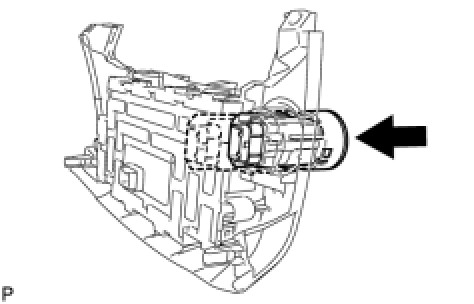

(a) Attach the 2 claws to install the engine switch.

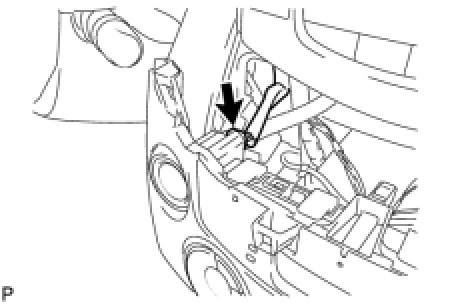

(b) Connect the switch connector.





2. INSTALL AIR CONDITIONING CONTROL ASSEMBLY

(a) Install the air conditioning control Installation.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
